Diacom-Lite-FREQ-UTIUM in Suitcase

Diacom-Lite-FREQ-UTIUM in Suitcase

The DIACOM-Lite-FREQ-Utium device is registered by certification authorities as a combined measuring instrument with a low-frequency generator. It measures weak electromagnetic fields, while the generator produces low-energy electromagnetic pulses.

According to patent No. RU0002721874 (https://patentscope.wipo.int/search/en/detail.jsf?docId=RU238125876&_cid=P22-KBPHXG-10666-2#), the device allows for the detection of frequency deviations in frequency fluctuation that have arisen or been caused by pathogenic factors, including pathogenic microflora. The frequency module can generate a combination of frequencies aimed at eliminating these factors.

The device has successfully passed all necessary tests, including:

✔ Electromagnetic safety

✔ Environmental safety

✔ Human and animal safety

Design and Features

The device has a rectangular shape with three LED indicators on the front panel and various connectors on the back:

🔹 USB port

🔹 Connectors for Bioinductor and Induction Cup (Reprinter)

🔹 FREQ port (frequency generator output)

🔹 Key differences from the DIACOM-Lite-FREQ-USB model:

FREQ output monitoring

Ability to connect active Bioinductors

Online firmware update capability

📏 Device dimensions: 156 × 180 × 36 mm

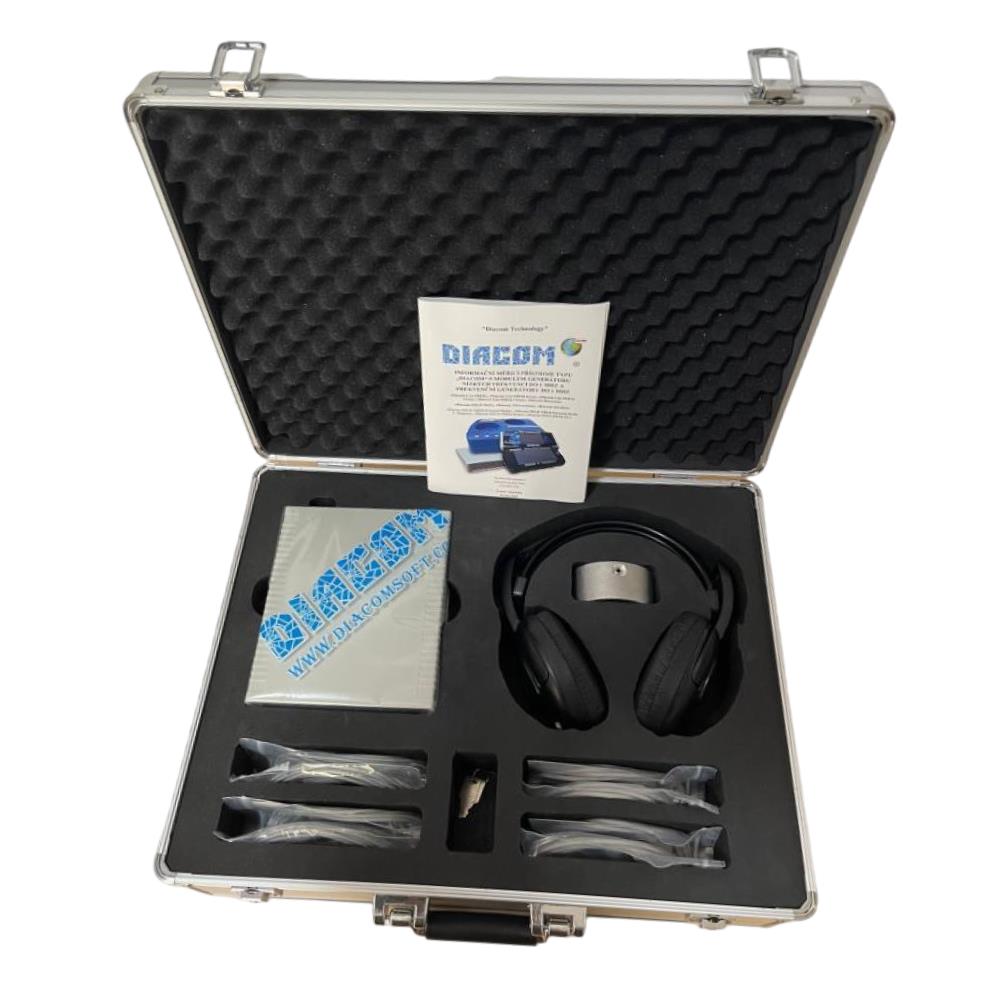

Package Contents

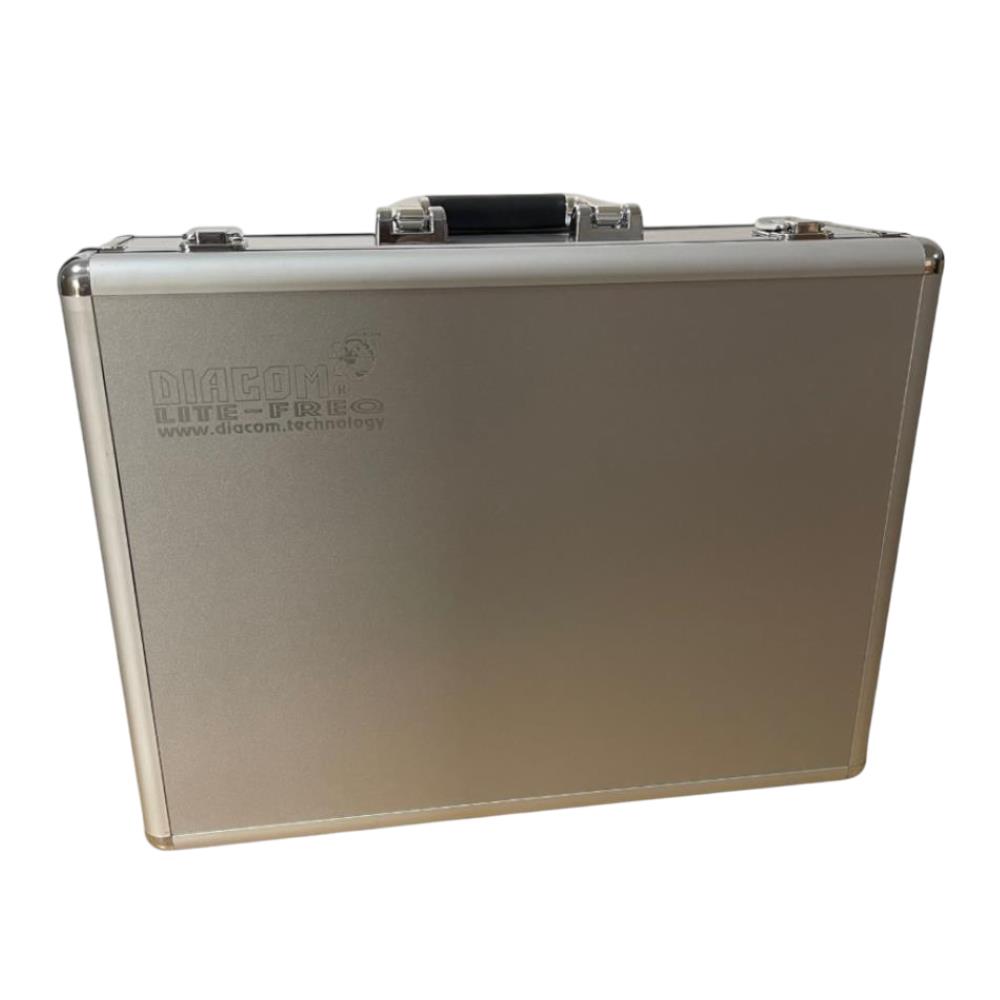

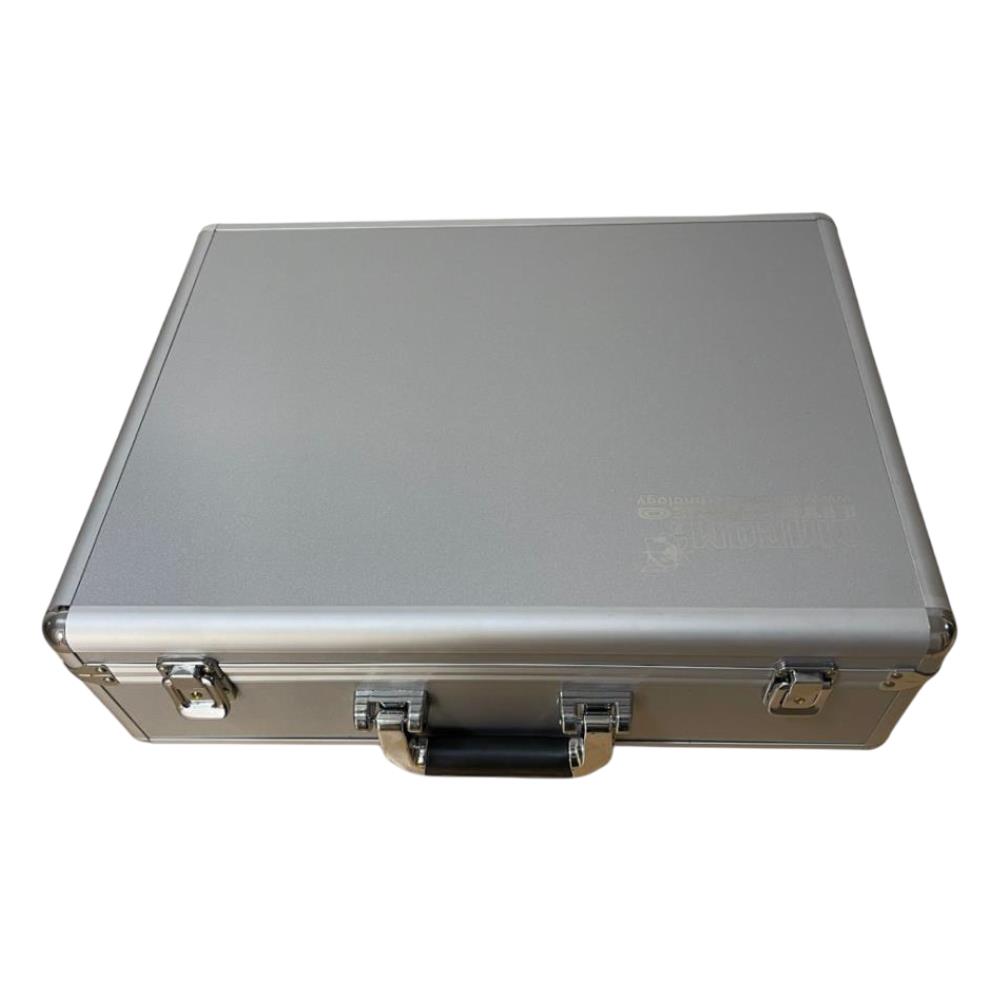

The device is supplied in a specially designed aluminum case and includes:

✅ Electromagnetic Bioinductors

✅ Electromagnetic Reprinter (in the shape of a cup)

✅ USB cable

✅ FREQ cables

✅ User manual

✅ Warranty card

Internal Components

Inside the main unit, the following electronic components are located:

🔹 Radioelectronic board with an integrated anti-tampering protection system

🔹 Communication module for PC connectivity

🔹 Circuit for generating and detecting weak electromagnetic fields

🔹 Circuit for generating low-energy electromagnetic waves

🔹 Circuit for generating electrical impulses with various waveform shapes and amplitudes up to 9V

Purpose and Functionality

The device is primarily intended for researching the relationship between weak electromagnetic oscillations and various environmental factors affecting humans and animals.

Additionally, the generated weak electromagnetic signal can influence microorganisms, particularly pathogenic microflora.

🔬 The combination of diagnostic and frequency technologies allows for deeper research into the effects of electromagnetic waves on biological systems.

To conduct these studies, freely available software can be used.

The device is compatible with DIACOM-MONITOR and DIACOM-GENERATOR software applications.

📥 To connect the device to a computer, the necessary drivers must be downloaded and installed.

Operating Conditions

The device is designed for optimal operation under the following conditions:

🌡 Temperature: +25°C ± 10°C

💧 Relative humidity: 45% – 80%

🌍 Atmospheric pressure: 83–106 kPa (630–800 mmHg)

🚫 Absence of active chemical substances in the surrounding environment

Technical Specifications

🔌 Power supply: Computer USB port

⚡ Operating voltage: 5V

⚙ Current consumption: up to 500 mA

📡 Measured frequency range: 1 Hz – 1 MHz

📶 Overlapping frequency on the electromagnetic component: 5.5 GHz

📢 Generated frequency range: 1 Hz – 1 MHz

🔗 Connection speed: up to 1 MHz

🛠 Bioinductors: Passive and active

🔄 Electromagnetic Reprinter: Active, with possible feedback capability

Important Information

❗ The price does not include training or technical support.

🛡 Diacom Technology® provides a 2-year limited warranty for this device.

⚠ The warranty does not cover:

Battery

Cables and consumables

Mechanical damage caused by drops, impacts, liquid ingress, or any other improper handling by the user
