DIACOM-SOLO-IOniser-UNO

DIACOM-SOLO-IOniser-UNO

DIACOM-SOLO-IOniser-UNO is a compact electronic generator for preparing ionic and colloidal solutions of various metals in a water-based medium.

The device is designed for use with replaceable metal electrodes and supports silver, gold, copper, zinc, and other compatible electrically conductive metals.

The device is registered by certification bodies as a generator for the preparation of ionic solutions, including solutions based on:

🔹 silver

🔹 gold

🔹 copper

🔹 zinc

🔹 other compatible metals

DIACOM-SOLO-IOniser-UNO has passed the prescribed tests, including:

🔹 electromagnetic safety

🔹 environmental safety

🔹 safety for use by people

🔹 safety for use in the presence of animals

The device combines a compact enclosure, digital control, an information display, LED indication, automatic electrode polarity reversal, and modern USB-C power supply.

Main Purpose

DIACOM-SOLO-IOniser-UNO is designed for preparing aqueous solutions containing ions and colloidal particles of the selected metal.

Depending on the installed electrodes, the device can be used to prepare solutions of:

🥈 silver

🥇 gold

🟠 copper

⚙ zinc

🔩 other compatible electrically conductive metals

The primary task of the device is to provide a controlled electrochemical process in which particles and ions of the corresponding metal pass into the water-based medium.

Operating Principle

DIACOM-SOLO-IOniser-UNO operates on the basis of a controlled electrochemical process.

Electrodes made from the selected metal are inserted into the lower connectors of the device.

The electrodes are immersed in prepared water.

The user selects the required operating mode.

The device electronics generate the corresponding electrical signal.

During operation, the device automatically changes the polarity of the electrodes.

Ions and dispersed particles of the metal used gradually pass into the water-based medium.

After the configured operating cycle is complete, the corresponding ionized or colloidal solution is obtained.

Automatic process control significantly simplifies operation of the device.

Automatic Polarity Reversal

One of the important features of DIACOM-SOLO-IOniser-UNO is automatic reversal of electrode polarity during operation.

The device periodically changes the direction of the electrical process between the two electrodes.

This allows:

🔹 more even use of the surfaces of both electrodes

🔹 reduction of one-sided deposit formation

🔹 maintenance of a more stable electrochemical process

🔹 more uniform wear of the metal electrodes

🔹 improved repeatability of operating cycles

Polarity reversal is performed automatically by the electronic control system.

LED Indication

An LED indicator is located on the front panel of DIACOM-SOLO-IOniser-UNO.

It is used to visually indicate:

🔹 device operation

🔹 current process status

🔹 electrode polarity reversal

This allows the user to visually monitor the main stages of device operation.

Information Display

DIACOM-SOLO-IOniser-UNO is equipped with a built-in information display.

The display shows the main parameters and device states during setup and program execution.

Depending on the selected mode, the display can show information required for:

🔹 mode selection

🔹 monitoring the operating process

🔹 displaying the current status

🔹 setting available parameters

🔹 monitoring program execution

The built-in display allows the device to be controlled directly from its enclosure without requiring a permanent computer connection.

Control Buttons

Control buttons are located on the front panel.

They allow the user to:

🔹 switch on and configure the device

🔹 select the intended mode

🔹 change available parameters

🔹 start the operating cycle

🔹 monitor device operation

The interface is designed so that the main operations can be performed directly on the device.

Operation with Silver

The standard configuration of DIACOM-SOLO-IOniser-UNO provides for the use of silver electrodes.

The package includes:

🥈 2 silver electrodes made of 999-fine silver

The electrodes undergo the appropriate control and are intended for use with this device.

During operation, the electronic system applies an electrical signal to the silver electrodes and automatically changes their polarity.

As a result, silver particles and ions gradually pass into the prepared water.

The characteristics of the resulting solution depend on:

🔹 water purity

🔹 silver purity

🔹 process duration

🔹 electrical parameters

🔹 condition of the electrodes

🔹 distance between the electrodes

🔹 water temperature

🔹 initial electrical conductivity of the water

Operation with Gold

When compatible gold electrodes are installed, DIACOM-SOLO-IOniser-UNO can be used to prepare gold solutions.

The operating principle remains the same:

🔹 the device generates a control signal

🔹 electric current passes through the electrodes

🔹 polarity is changed automatically

🔹 metal particles and ions pass into the water-based medium

Electrodes of appropriate purity must be used, and the operating modes specified by the manufacturer must be followed.

Operation with Copper

DIACOM-SOLO-IOniser-UNO supports the use of compatible copper electrodes.

This makes it possible to use a single electronic unit with different metals without requiring a separate generator for each type of electrode.

The characteristics of the solution are determined by the properties of the copper used and the configured parameters of the operating process.

Operation with Zinc

When appropriate zinc electrodes are installed, the device can be used to prepare zinc-based solutions.

As with other metals, it is recommended to use electrodes of known composition and high purity.

Universal Replaceable-Electrode System

The lower part of the DIACOM-SOLO-IOniser-UNO enclosure contains:

🔗 2 connectors for installing metal electrodes

The user can install the appropriate pair of electrodes depending on the required type of solution.

This allows one device to be used with different metals.

Supported options may include:

🔹 silver

🔹 gold

🔹 copper

🔹 zinc

🔹 other compatible metal electrodes

Electrode Requirements

Electrode quality is one of the key factors determining the composition of the final solution.

It should be taken into account that impurities present in an electrode may pass into the water together with the main metal.

Therefore, it is recommended to:

🔹 use high-purity metals

🔹 avoid unknown alloys

🔹 use electrodes recommended by the manufacturer

🔹 regularly inspect the condition of the electrode surfaces

🔹 clean the electrodes after use

For standard operation with silver, the device is supplied with electrodes made of 999-fine silver.

Water Requirements

For operation of DIACOM-SOLO-IOniser-UNO, it is recommended to use distilled water of appropriate quality.

The purity of the source water is particularly important because foreign dissolved substances may participate in electrochemical reactions and alter the properties of the final solution.

Water quality affects:

🔹 electrical conductivity

🔹 ionization rate

🔹 process stability

🔹 formation of additional chemical compounds

🔹 final composition of the solution

For the most controlled result, water with a high content of salts and mineral impurities should be avoided.

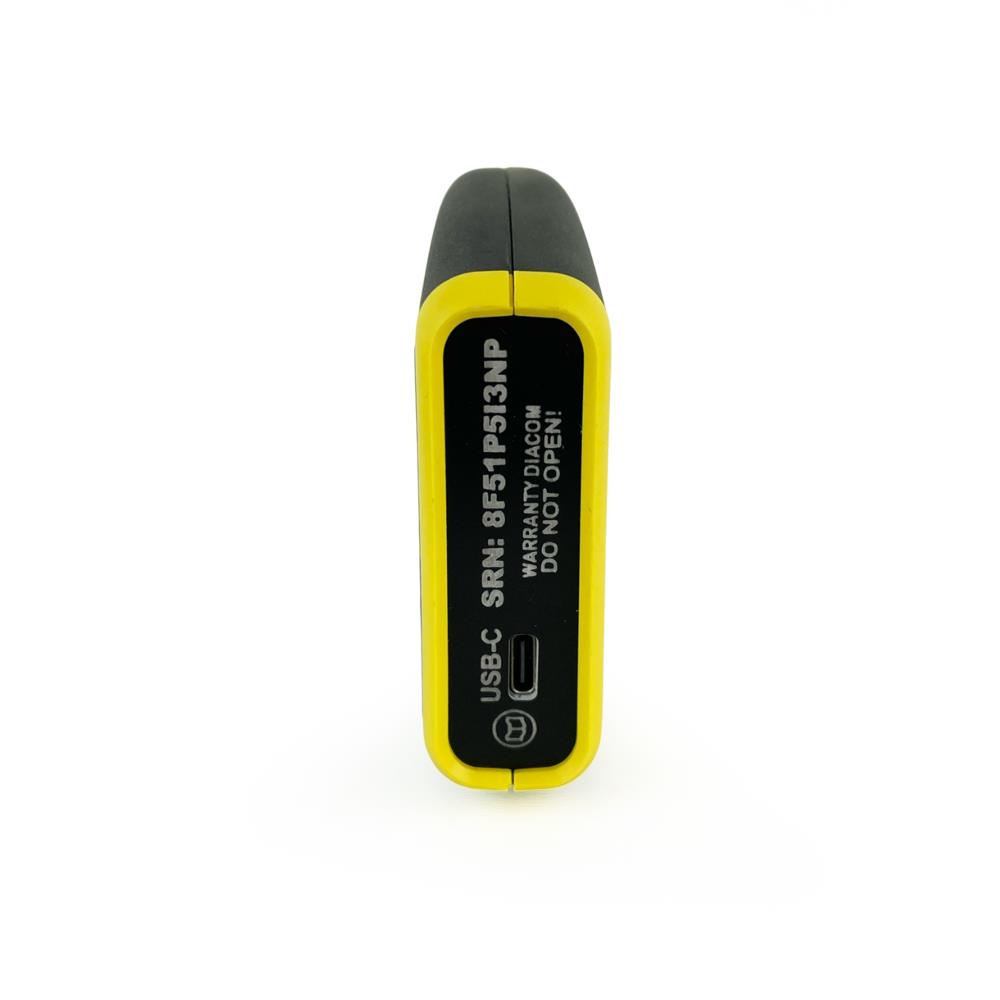

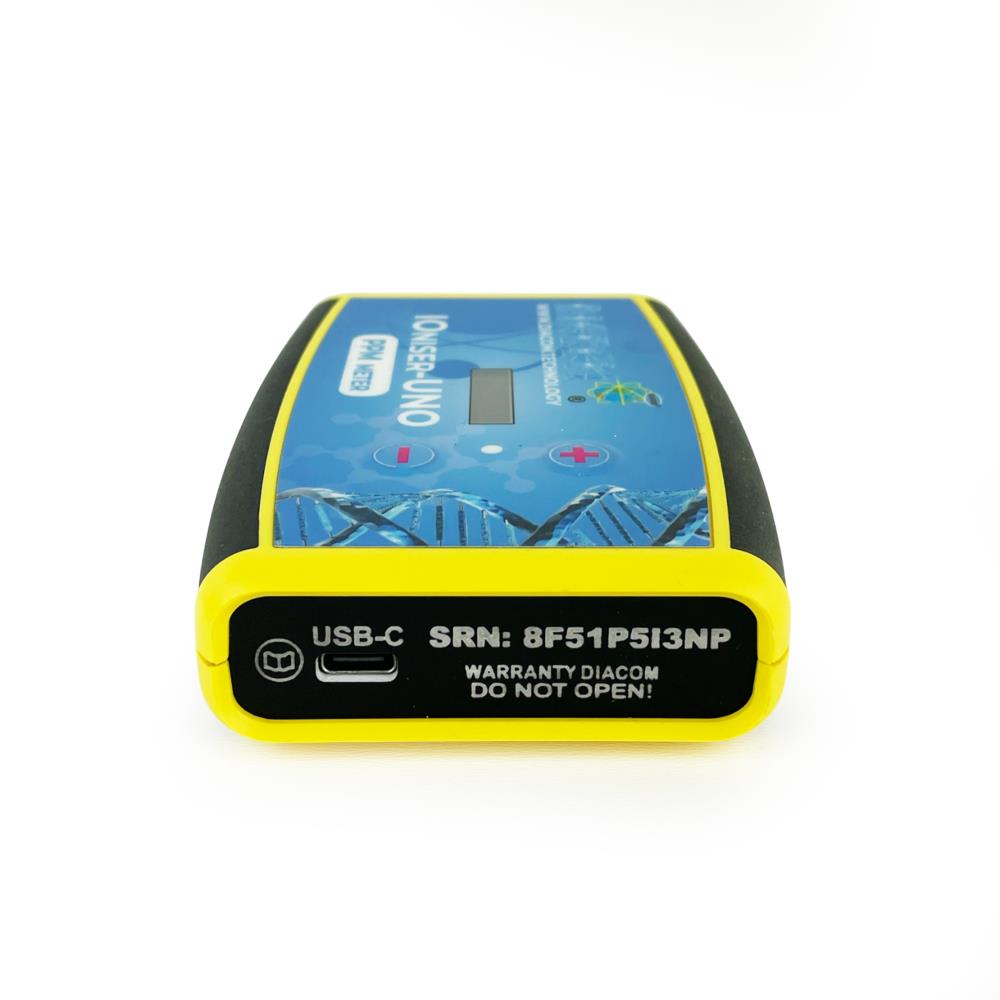

USB-C

DIACOM-SOLO-IOniser-UNO is equipped with a modern connector:

🔌 USB-C

USB-C is used to connect an external power source.

Device operating voltage:

⚡ 5 V

The use of a standard USB-C interface simplifies connection of the device and allows compatible power sources with suitable parameters to be used.

Power Supply

DIACOM-SOLO-IOniser-UNO is powered by an external source.

Main parameters:

⚡ Supply voltage: 5 V

🔋 Current consumption: up to 300 mA

USB-C is used for power supply.

The device does not require a complex specialized power source and can be used with a compatible 5 V source that meets the manufacturer's requirements.

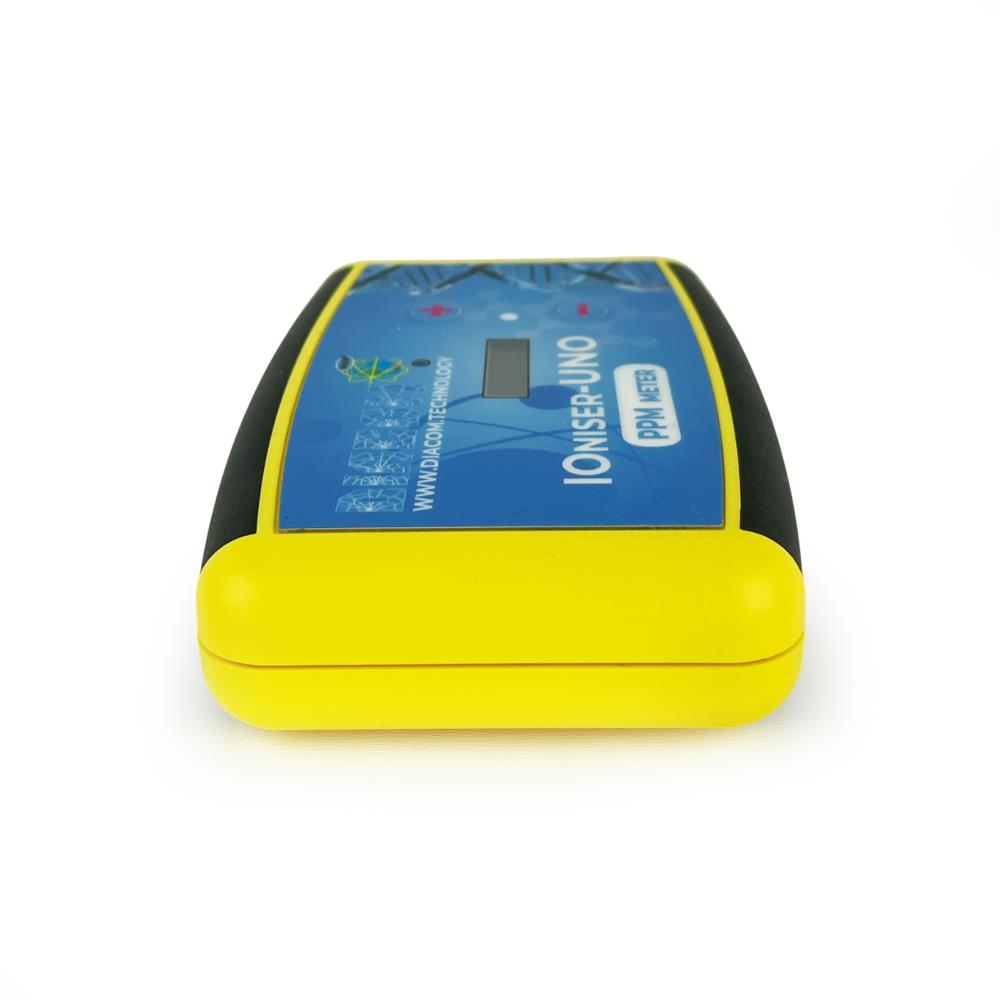

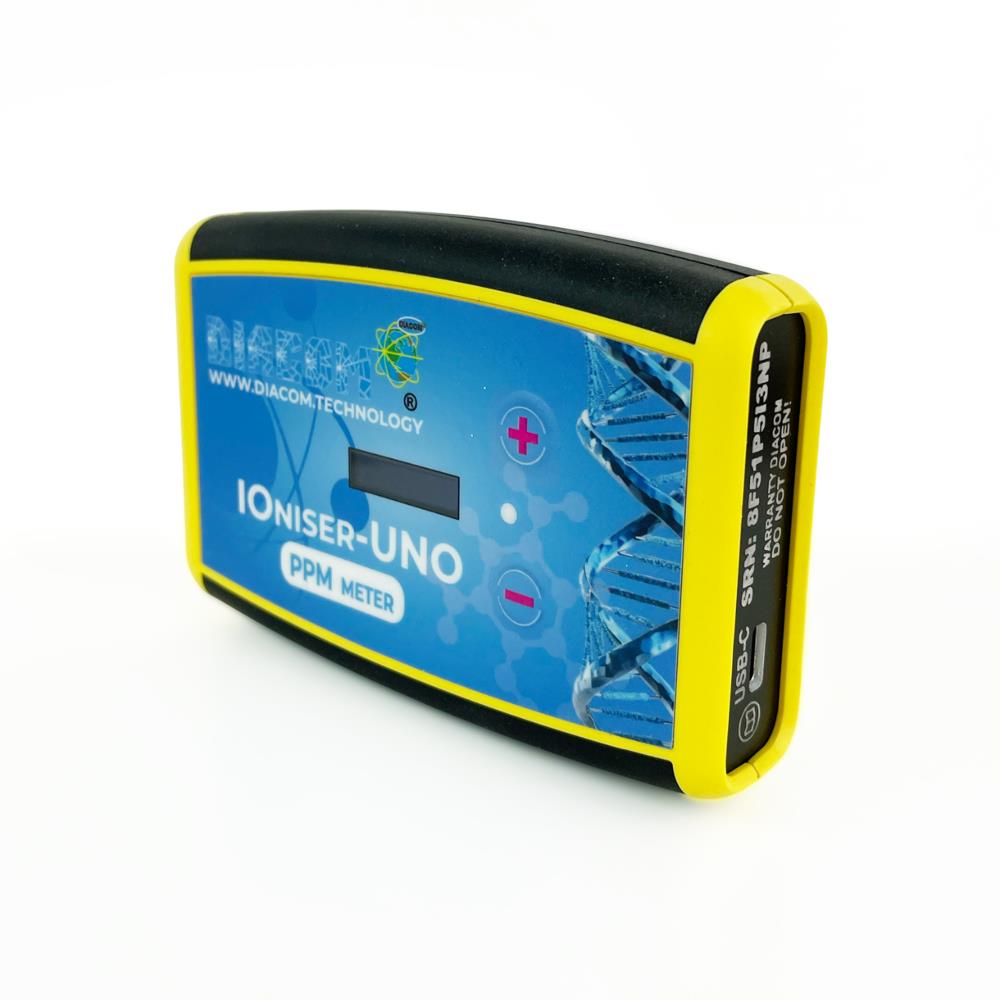

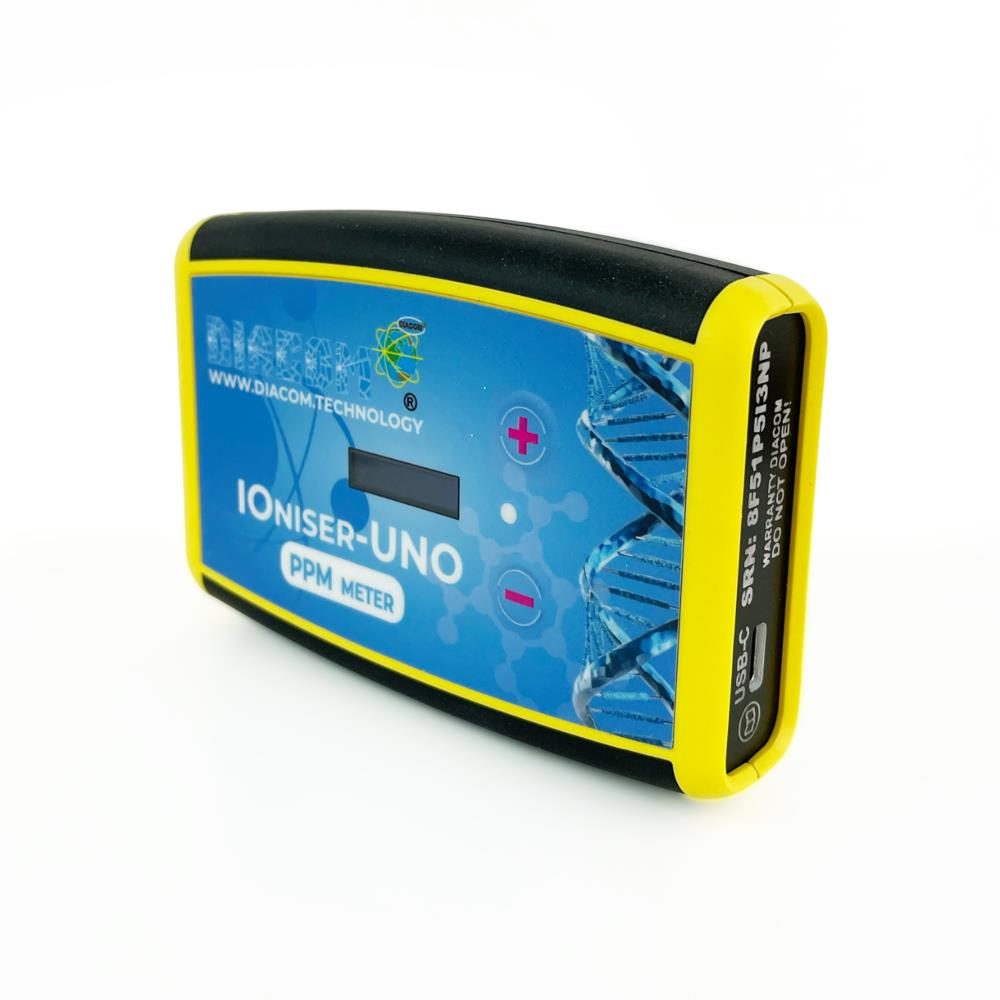

Device Design

DIACOM-SOLO-IOniser-UNO is housed in a compact enclosure measuring:

📐 117 × 78 × 25 mm

The front panel includes:

🔹 information display

🔹 LED indicator

🔹 control buttons

The enclosure includes:

🔌 USB-C connector for power

The lower part of the device contains:

🔗 two connectors for installing metal electrodes

Inside the enclosure is an electronic circuit board that includes:

🔹 external power control circuit

🔹 electronic control system

🔹 information-display control circuit

🔹 LED indication control system

🔹 automatic polarity-switching circuit

🔹 electronic generator of the working signal

🔹 electrode control system

Compact Design and Autonomous Control

DIACOM-SOLO-IOniser-UNO does not require continuous computer control to perform a standard operating cycle.

All main operations are performed directly on the device.

The user can:

install the electrodes;

connect power via USB-C;

prepare a container with distilled water;

immerse the electrodes;

select the required mode;

start the process;

monitor operation using the display and LED indication.

This makes the device convenient for regular personal use.

Main Areas of Application

DIACOM-SOLO-IOniser-UNO is designed for:

🔹 preparing silver-ion solutions

🔹 preparing colloidal silver solutions

🔹 operation with gold electrodes

🔹 preparing copper solutions

🔹 preparing zinc solutions

🔹 operation with other compatible metals

🔹 research into electrochemical ionization processes

🔹 preparing ionized solutions for user and research purposes

Main Advantages of DIACOM-SOLO-IOniser-UNO

The device combines:

🔹 compact enclosure

🔹 built-in information display

🔹 button control

🔹 LED indication

🔹 automatic polarity reversal

🔹 universal replaceable-electrode system

🔹 support for different metals

🔹 5 V power supply

🔹 modern USB-C

🔹 simple control directly on the device

🔹 999-fine silver electrodes in the standard package

🔹 specialized aluminum transport case

Difference from DIACOM-SOLO-IOniser

DIACOM-SOLO-IOniser-UNO is a more advanced version of the basic DIACOM-SOLO-IOniser.

DIACOM-SOLO-IOniser

🔹 simpler control system

🔹 basic ionization process

🔹 operation with replaceable metal electrodes

🔹 minimal user interface

DIACOM-SOLO-IOniser-UNO

🔹 built-in information display

🔹 control buttons

🔹 LED indication

🔹 automatic display of operating states

🔹 automatic electrode polarity reversal

🔹 USB-C

🔹 more advanced electronic control system

🔹 compact 117 × 78 × 25 mm enclosure

UNO is a more modern and convenient version of the system for preparing ionic solutions.

Technical Specifications

📱 Device type: generator for preparing ionic and colloidal metal solutions

🧪 Main purpose: preparation of solutions of silver, gold, copper, zinc, and other compatible metals

📐 Enclosure dimensions: 117 × 78 × 25 mm

🖥 Display: built-in information display

💡 LED indication: available

🎛 Control: buttons on the device enclosure

🔗 Number of electrode connectors: 2

🥈 Standard electrodes: 2 electrodes made of 999-fine silver

🔄 Automatic polarity reversal: supported

🔌 Power interface: USB-C

⚡ Power source: external source

⚡ Supply voltage: 5 V

🔋 Current consumption: up to 300 mA

💧 Recommended working medium: distilled water

🔩 Supported electrode materials: silver, gold, copper, zinc, and other compatible metals

⚙ Process control: electronic

🏠 Usage format: compact personal device

💻 Permanent computer connection: not required

Package Contents

The standard DIACOM-SOLO-IOniser-UNO package includes:

✅ DIACOM-SOLO-IOniser-UNO main unit

✅ 2 silver electrodes of 999 fineness

✅ power cable

✅ accompanying documentation

✅ specialized aluminum case

The package may be supplemented with other types of electrodes according to the specific offer.

Safety

DIACOM-SOLO-IOniser-UNO is registered as a generator for preparing ionic solutions and has passed the prescribed tests.

During operation:

🔹 follow the User Manual

🔹 use a compatible 5 V power source

🔹 use only suitable metal electrodes

🔹 do not allow the electrodes to touch each other during operation

🔹 prevent liquid from entering the electronic enclosure

🔹 do not use a damaged USB-C cable

🔹 do not open the device independently

🔹 clean the electrodes after use

Important Information About the Final Solution

DIACOM-SOLO-IOniser-UNO provides an electrochemical process for preparing an ionized or colloidal solution; however, the actual composition and concentration of the final product depend on:

🔹 water quality

🔹 metal purity

🔹 process duration

🔹 electrical parameters

🔹 temperature

🔹 electrode condition

🔹 initial electrical conductivity of the water

If the exact concentration of the solution needs to be determined, an appropriate measuring instrument should be used.

DIACOM-SOLO-IOniser-UNO by itself does not replace laboratory chemical analysis.

Warranty

🛡 Diacom Technology® provides a limited 2-year warranty for the main electronic unit of DIACOM-SOLO-IOniser-UNO.

The warranty does not cover:

— mechanical damage

— drops and impacts

— liquid ingress into the enclosure

— improper operation

— unauthorized opening or repair

— cables

— electrodes

— natural wear of metal electrodes

— other consumable components

Training, Technical and Information Support

❗ The price of DIACOM-SOLO-IOniser-UNO does not include training, technical support, or information support.

Training, technical consultations, information support, and additional service options are provided separately according to the terms of the specific offer.

DIACOM-SOLO-IOniser-UNO

DIACOM-SOLO-IOniser-UNO is a modern compact generator for preparing ionic and colloidal solutions of various metals.

The device combines:

🖥 built-in display

🎛 button control

💡 LED indication

🔄 automatic polarity reversal

🔗 replaceable metal electrodes

🔌 power via USB-C

🥈 certified 999-fine silver electrodes in the standard package

For operation, it is sufficient to install the appropriate electrodes, connect power via USB-C, place the electrodes in distilled water, and start the intended mode.

The automated electronic system controls the operating process and polarity reversal, making DIACOM-SOLO-IOniser-UNO a convenient universal platform for working with silver, gold, copper, zinc, and other compatible metals.

DIACOM TECHNOLOGY® — controlled metal ionization in a modern compact format.

Certification is available upon request. Documents are available in PDF format.
