DIACOM-Magneto-Modul is a peripheral generator of a weak electromagnetic field designed to convert electrical control impulses received from a compatible DIACOM generator into an electromagnetic field of a specified frequency.

The device is used as an external module for frequency-based action by electromagnetic impulses within compatible DIACOM programs and operating modes.

The main area of application is operation with frequency programs intended for action on various pathogenic microorganisms, bacteria, viruses, and other factors for which corresponding frequency parameters are provided in the system.

DIACOM-Magneto-Modul is registered by certification bodies as a generator of weak electromagnetic fields.

The device has passed the prescribed tests, including:

🔹 electromagnetic safety

🔹 environmental safety

🔹 safety for use by people

🔹 safety for use in the presence of animals

Main Purpose

DIACOM-Magneto-Modul is designed to reproduce an electromagnetic field with parameters defined by an external FREQ generator.

Magneto-Modul itself does not create a program autonomously; it functions as an external execution module.

The operating logic of the system is as follows:

1. A compatible DIACOM device generates electrical frequency impulses

↓

2. The impulses are transmitted to DIACOM-Magneto-Modul through a connection jack cable

↓

3. Magneto-Modul converts the electrical signal into an electromagnetic field

↓

4. The electromagnetic field is reproduced with parameters defined by the external generator

Thus, the frequency and operating sequence are defined by the main device, while DIACOM-Magneto-Modul is used directly to generate the corresponding electromagnetic field.

Operation with Frequency Programs

DIACOM-Magneto-Modul is used together with DIACOM frequency programs.

Depending on the generator used and the selected software mode, the device can reproduce an electromagnetic field with different frequency and timing parameters.

This allows Magneto-Modul to be used with programs associated with:

🔹 pathogenic microflora

🔹 bacteria

🔹 viruses

🔹 various microorganisms

🔹 other pathogenic factors for which corresponding frequency programs are available

The control frequency is generated by the external DIACOM device and transmitted to Magneto-Modul through the wired connection.

Built-in Battery

The current version of DIACOM-Magneto-Modul is equipped with a built-in battery.

This distinguishes it from earlier modifications that used an external power source.

The built-in battery allows the module to be used without permanent connection to an external power adapter.

Main advantages:

🔋 autonomous power supply

🔋 no need for permanent connection of an external adapter

🔋 more convenient use together with mobile DIACOM devices

🔋 fewer connection cables during operation

🔋 possibility of use away from a fixed workstation

Charging via USB-C

The built-in battery is charged through the modern connector:

🔌 USB-C

USB-C is used specifically to supply power and charge the built-in Magneto-Modul battery.

A compatible USB power source can be used for charging.

Before prolonged use, it is recommended to make sure that the device battery has a sufficient charge level.

Control via Jack Cable

Control frequency impulses are transmitted to DIACOM-Magneto-Modul through a standard wired jack connection.

Thus, in the current design the functions are separated:

🔌 USB-C — charging the built-in battery

🎛 Jack connector — receiving the control signal from an external DIACOM generator

This separation simplifies operation and allows Magneto-Modul to be used with several compatible DIACOM devices.

Primary Compatibility

DIACOM-Magneto-Modul is primarily intended for use with the personal frequency generators:

📌 DIACOM-SOLO-FREQ-Personal-Medio

📌 DIACOM-SOLO-FREQ-Personal-Medio2-Magneto

Magneto-Modul is most commonly used with these devices.

A standard compatible jack cable is used for connection.

The main device generates the required frequency or impulse sequence, while Magneto-Modul converts the received electrical signal into an electromagnetic field.

Operation with DIACOM-SOLO-FREQ-Personal-Medio

When operating with MEDIO:

the required frequency program is selected or loaded into MEDIO;

DIACOM-Magneto-Modul is connected to the generator output using a jack cable;

MEDIO generates the control frequency impulses;

Magneto-Modul converts these impulses into an electromagnetic field.

Thus, MEDIO acts as the controlling frequency generator, while Magneto-Modul acts as an external electromagnetic execution module.

Operation with DIACOM-SOLO-FREQ-Personal-Medio2-Magneto

DIACOM-Magneto-Modul can also be used together with:

DIACOM-SOLO-FREQ-Personal-Medio2-Magneto

Despite the integrated magnetic module already present directly in MEDIO2-MAGNETO, an external DIACOM-Magneto-Modul can be used in intended configurations as an additional external source of electromagnetic field.

Connection is made through the corresponding jack output.

Operation with DIACOM-LITE-FREQ

DIACOM-Magneto-Modul can be connected to compatible devices of the family:

DIACOM-LITE-FREQ

A compatible cable is used from the FREQ output of the main device to the jack connector of Magneto-Modul.

The parameters of the reproduced electromagnetic field are determined by the control signal generated by the main device.

Operation with DIACOM-LITE-FREQ-SEPTIMUM

DIACOM-Magneto-Modul can also be used together with:

DIACOM-LITE-FREQ-SEPTIMUM

However, connection to SEPTIMUM requires a special connection cable because the parameters and design of the connectors on SEPTIMUM and other DIACOM models differ.

Such a cable must correspond to:

🔹 the SEPTIMUM connector type

🔹 the Magneto-Modul jack connector type

🔹 the electrical parameters of the respective outputs

🔹 the pinout of the connections used

Therefore, when operating with SEPTIMUM, only a compatible cable intended for this configuration must be used.

Compatible Devices

DIACOM-Magneto-Modul can be used with:

✅ DIACOM-SOLO-FREQ-Personal-Medio

✅ DIACOM-SOLO-FREQ-Personal-Medio2-Magneto

✅ DIACOM-LITE-FREQ

✅ DIACOM-LITE-FREQ-SEPTIMUM — through a special compatible cable

The main working devices for Magneto-Modul are:

⭐ MEDIO

⭐ MEDIO2-MAGNETO

Device Design

DIACOM-Magneto-Modul is housed in a compact enclosure.

Enclosure dimensions:

📐 66.25 × 66.25 × 27.50 mm

Inside the device are:

🔹 electronic control board

🔹 power-control circuit

🔹 input control-signal processing circuit

🔹 electronic section for generating the electromagnetic field

🔹 built-in battery

🔹 battery-charging circuit

🔹 USB-C interface

🔹 interface for connection to an external generator

The design is adapted for autonomous operation together with mobile personal DIACOM generators.

Connectors

The current version uses two main interfaces:

USB-C

Used for:

🔹 charging the built-in battery

🔹 connection of an external power source during charging

Jack Connector

Used for:

🔹 connection to a compatible DIACOM generator

🔹 receiving electrical control impulses

🔹 transmission of the frequency signal from the main device

Operating Principle

DIACOM-Magneto-Modul receives electrical impulses of a specific frequency from an external generator.

The device's electronic circuit converts these impulses into an electromagnetic field.

The frequency of the reproduced field corresponds to the parameters of the input control signal.

Thus, the device performs the conversion:

electrical frequency impulse → electromagnetic field

Field parameters depend on:

🔹 selected frequency

🔹 impulse sequence

🔹 software mode

🔹 characteristics of the controlling generator

Electromagnetic Field

DIACOM-Magneto-Modul is designed to generate a weak electromagnetic field with parameters defined by an external device.

Declared power/induction of the reproduced field:

🧲 0.15–0.20 T

The device is used only with compatible generators and in operating modes specified by the manufacturer.

Use with Pathogenic Factors

Within compatible frequency programs, Magneto-Modul can be used to generate an electromagnetic field with frequency parameters associated with various microorganisms and other pathogenic factors.

Software databases may contain frequencies relating to:

🔹 bacteria

🔹 viruses

🔹 fungal microflora

🔹 other microorganisms

🔹 various pathogenic factors

Specific parameters are determined by the selected program and the controlling generator.

Main Advantages

DIACOM-Magneto-Modul combines:

🔹 compact size

🔹 built-in battery

🔹 USB-C charging

🔹 simple wired control via jack

🔹 no need for a permanent external power source

🔹 compatibility with several DIACOM generators

🔹 operation with MEDIO

🔹 operation with MEDIO2-MAGNETO

🔹 support for DIACOM-LITE-FREQ

🔹 possibility of connection to SEPTIMUM through a special cable

🔹 reproduction of an electromagnetic field according to the signal from the external generator

Technical Specifications

🧲 Device type: weak electromagnetic-field generator

⚙ Operating principle: conversion of electrical impulses into an electromagnetic field

🔋 Power source: built-in battery

🔌 Charging: USB-C

🎛 Control input: jack

📡 Frequency control: from an external FREQ generator

🧲 Induction of the reproduced field: 0.15–0.20 T

📐 Enclosure dimensions: 66.25 × 66.25 × 27.50 mm

🔗 Primary compatibility: MEDIO / MEDIO2-MAGNETO

🔗 Additional compatibility: DIACOM-LITE-FREQ

🔗 SEPTIMUM: connection through a special compatible cable

💻 Independent program generation: not provided

🔄 Operation under control of an external generator: supported

Package Contents

Depending on the specific delivery, the package may include:

✅ DIACOM-Magneto-Modul

✅ connection jack cable

✅ USB-C charging cable

✅ accompanying documentation

✅ packaging

A separate specialized cable of the corresponding configuration may be required for connection to DIACOM-LITE-FREQ-SEPTIMUM.

Safety

DIACOM-Magneto-Modul is registered as a generator of weak electromagnetic fields and has passed the prescribed tests.

During operation:

🔹 follow the User Manual

🔹 use the device only with compatible generators

🔹 use appropriate connection cables

🔹 do not use damaged cables

🔹 avoid mechanical damage to the enclosure

🔹 prevent liquid ingress

🔹 do not open the device independently

🔹 use only operating modes specified by the manufacturer

Particular attention must be paid to using the correct cable when connecting to SEPTIMUM.

Warranty

🛡 Diacom Technology® provides a limited 2-year warranty for the main electronic unit of DIACOM-Magneto-Modul.

The warranty does not cover:

— battery

— cables

— consumable components

— mechanical damage

— drops and impacts

— damage caused by liquid ingress

— improper operation

— use of incompatible cables

— unauthorized opening or repair

The battery is a consumable component and is not part of the main electronic unit of the device.

Training and Technical Support

❗ The price of DIACOM-Magneto-Modul does not include training or technical support.

Training, extended technical support, and additional service options are provided separately according to the terms of the specific offer.

DIACOM-Magneto-Modul

DIACOM-Magneto-Modul is a compact autonomously powered peripheral module designed to convert electrical frequency impulses from a compatible DIACOM generator into an electromagnetic field.

The current version of the device is equipped with:

🔋 built-in battery

🔌 USB-C charging

🎛 control jack connector

🧲 electromagnetic-field generation system

The main devices for joint operation are:

DIACOM-SOLO-FREQ-Personal-Medio

and

DIACOM-SOLO-FREQ-Personal-Medio2-Magneto.

In addition, Magneto-Modul can be used with DIACOM-LITE-FREQ and DIACOM-LITE-FREQ-SEPTIMUM when an appropriate connection cable is available.

DIACOM TECHNOLOGY® — electromagnetic technologies in a compact autonomous format.

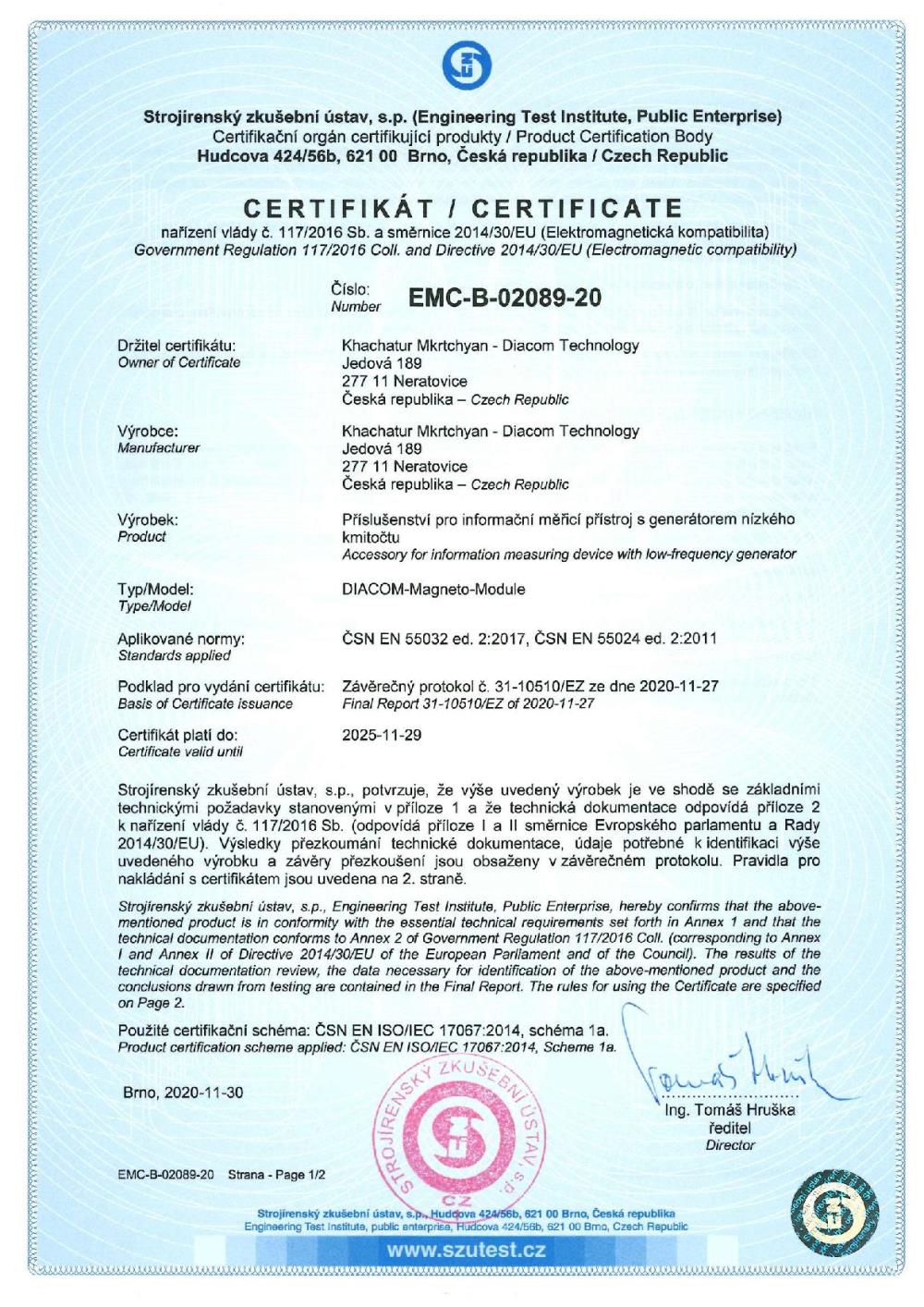

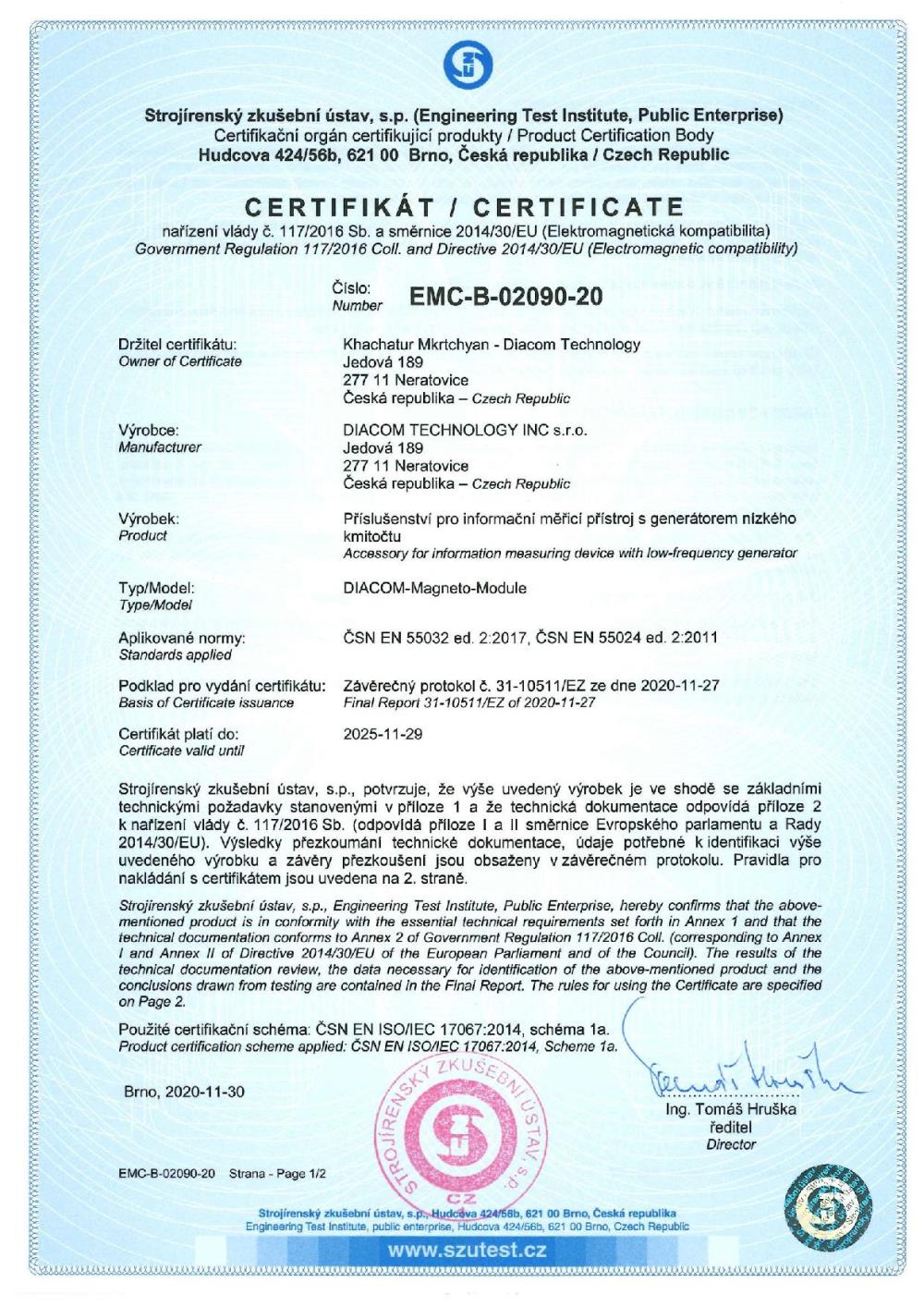

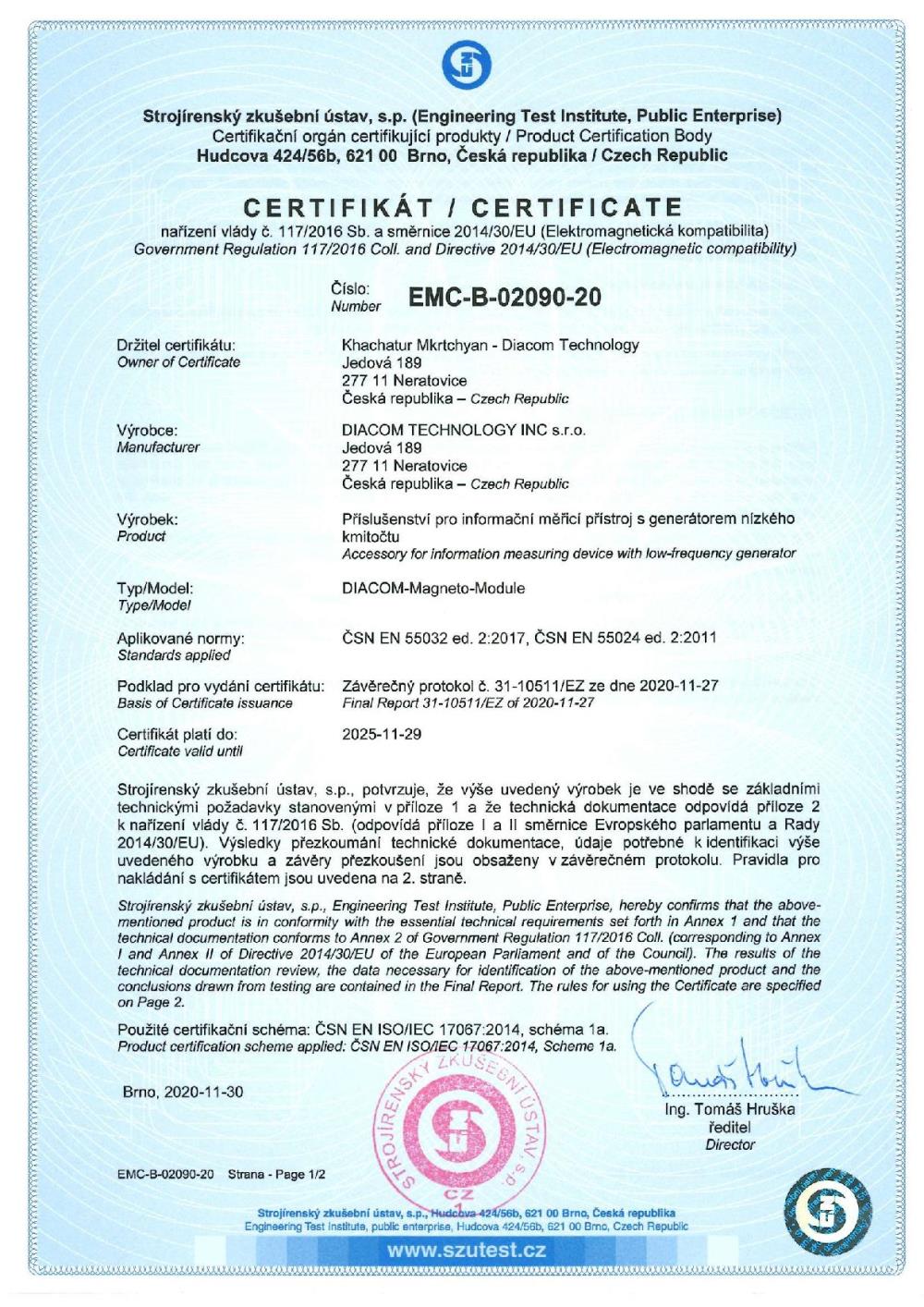

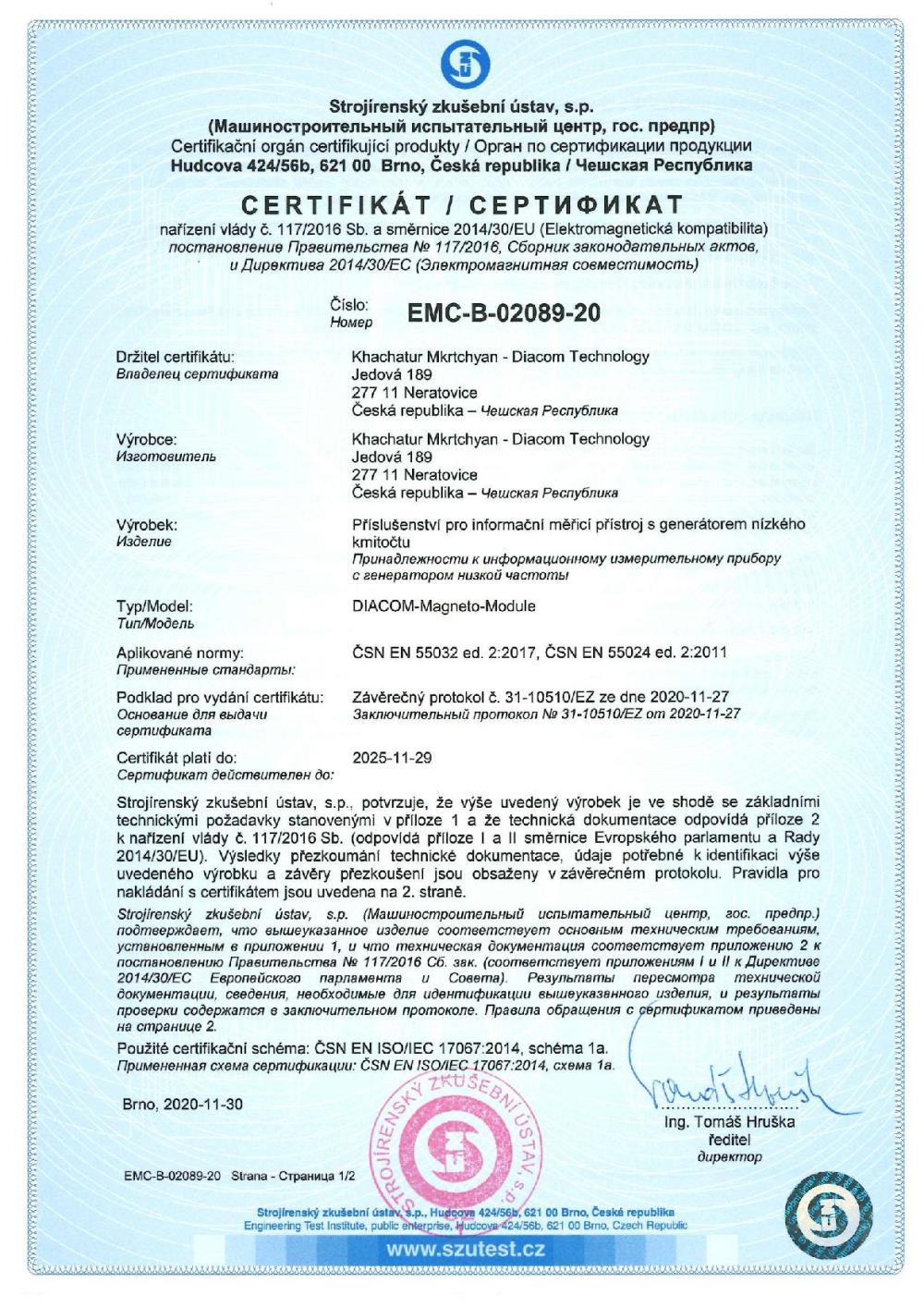

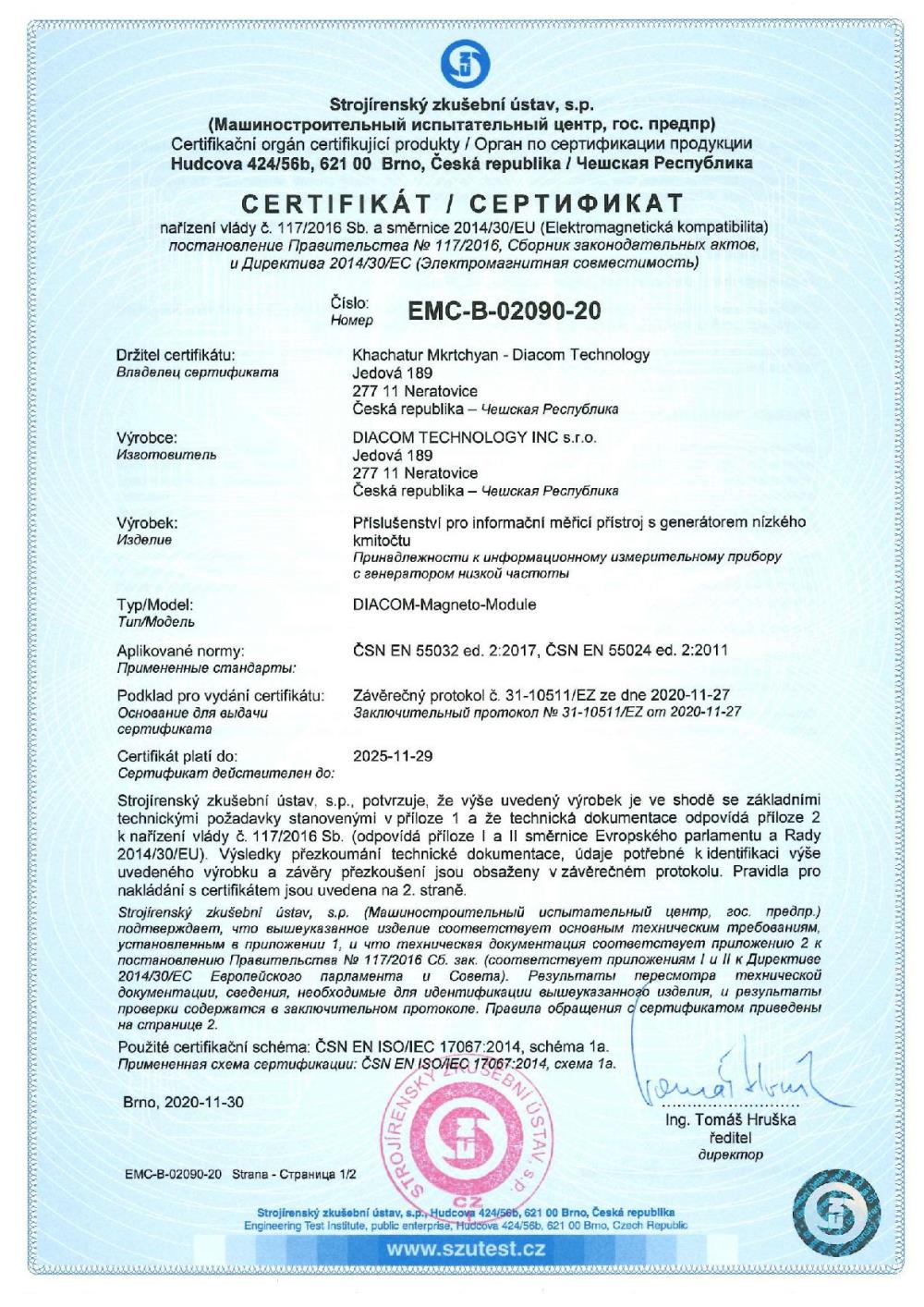

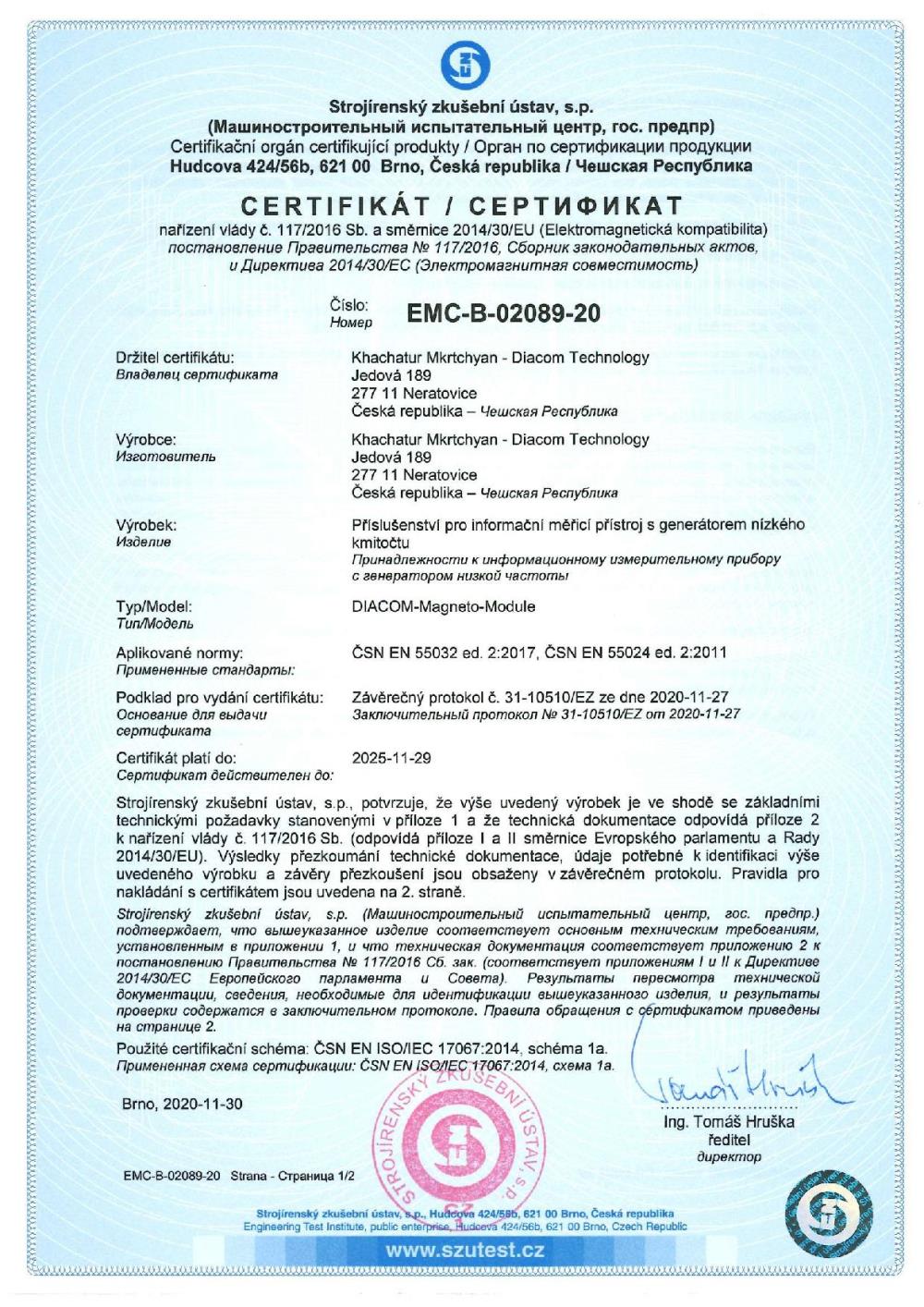

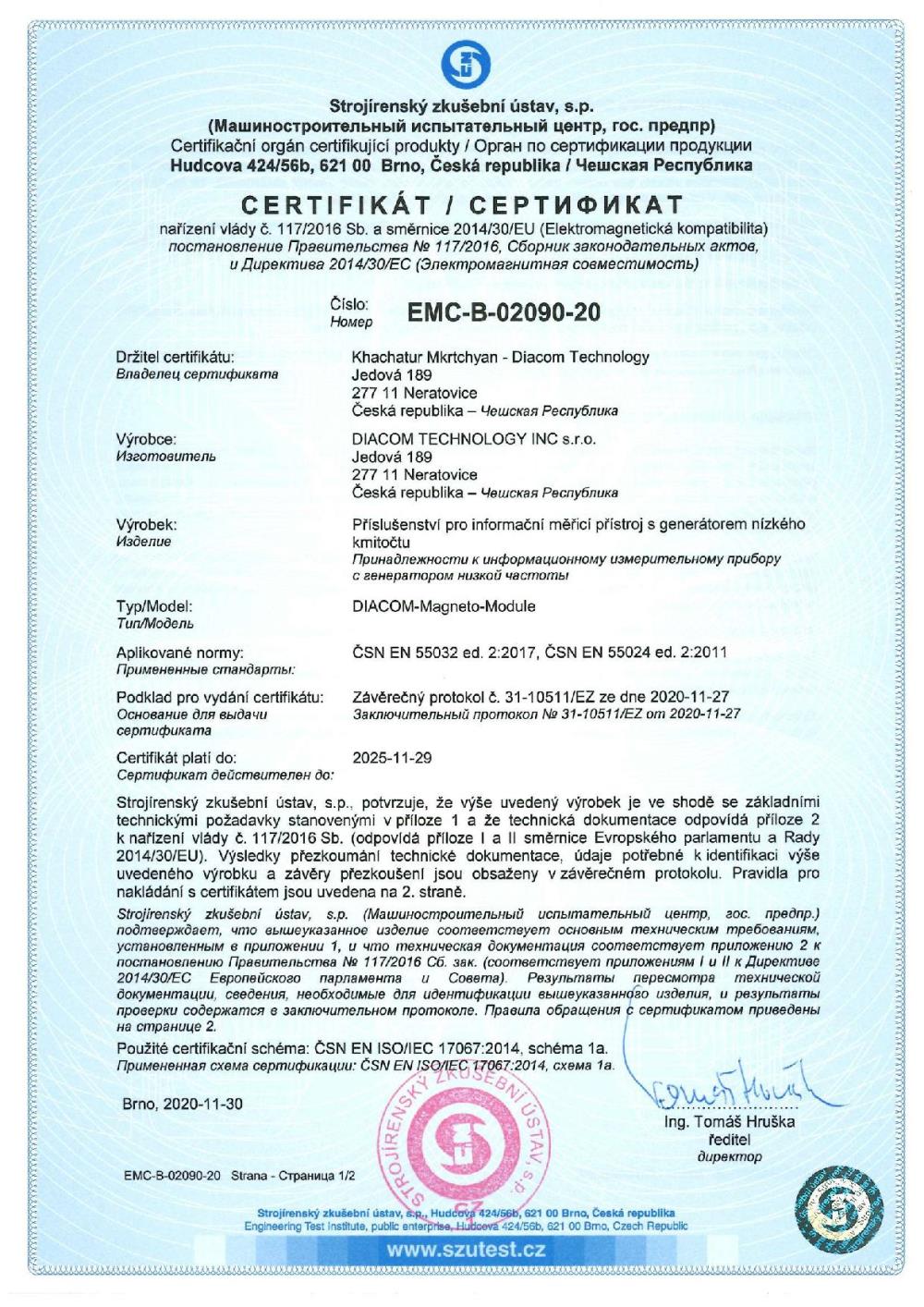

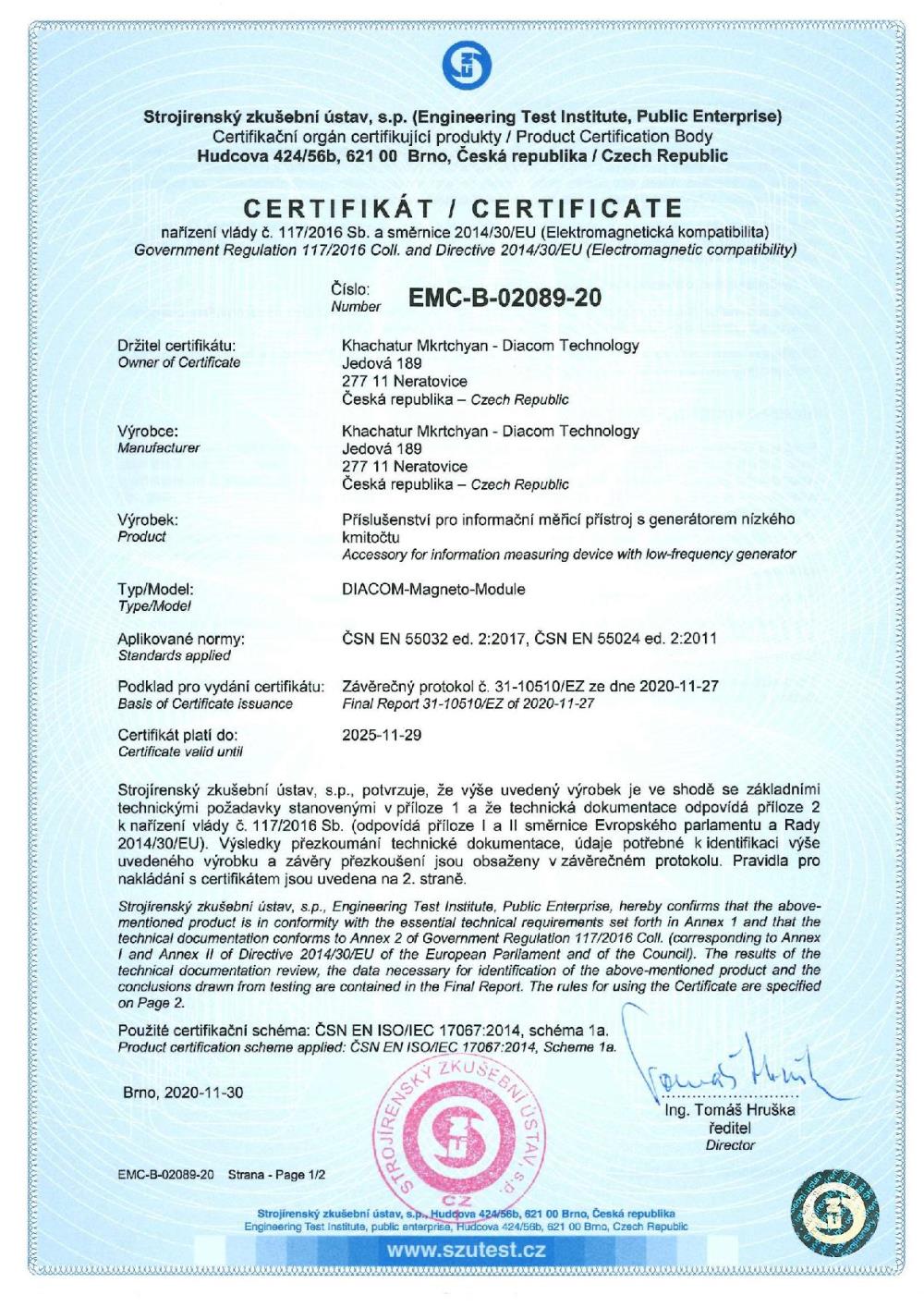

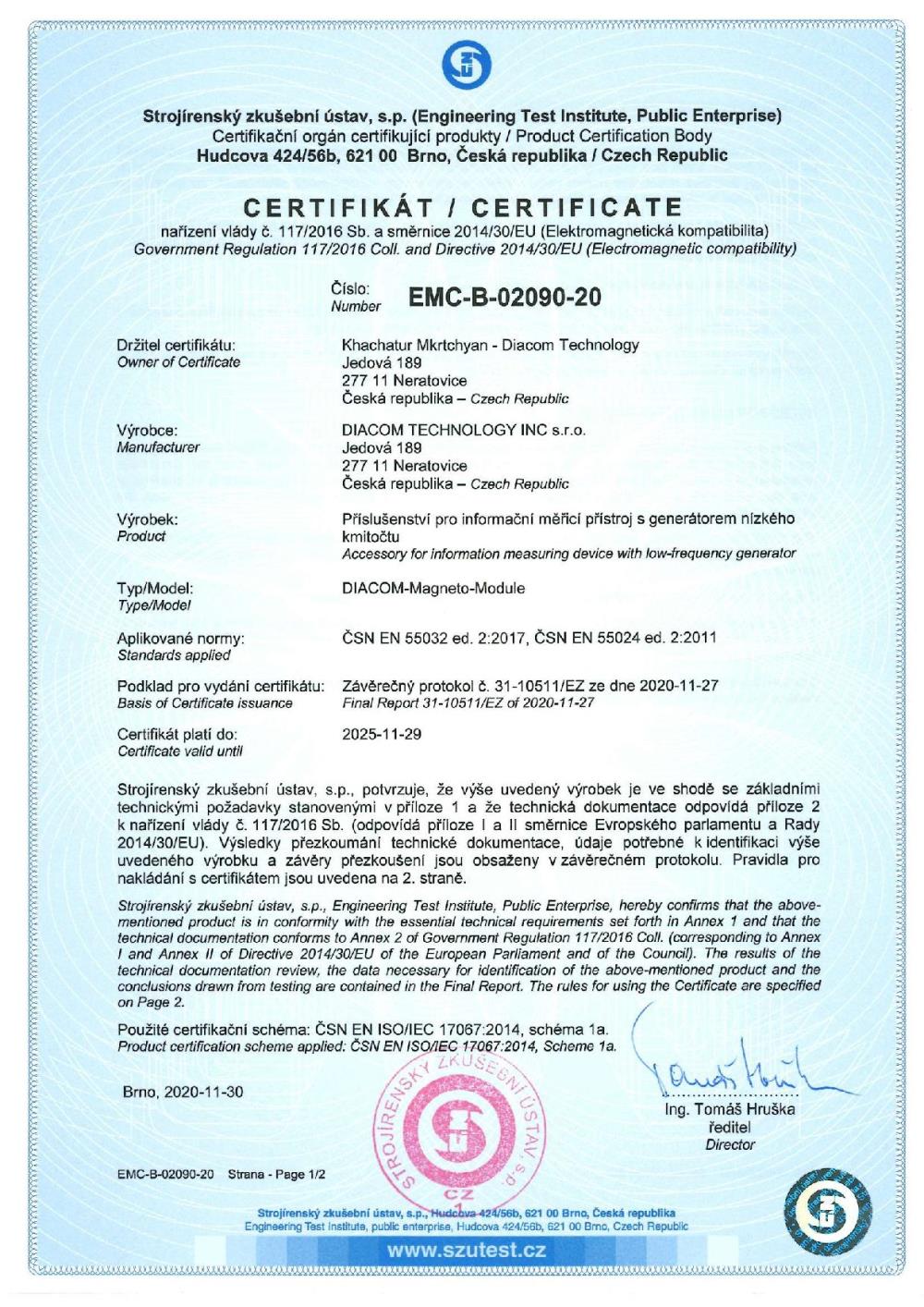

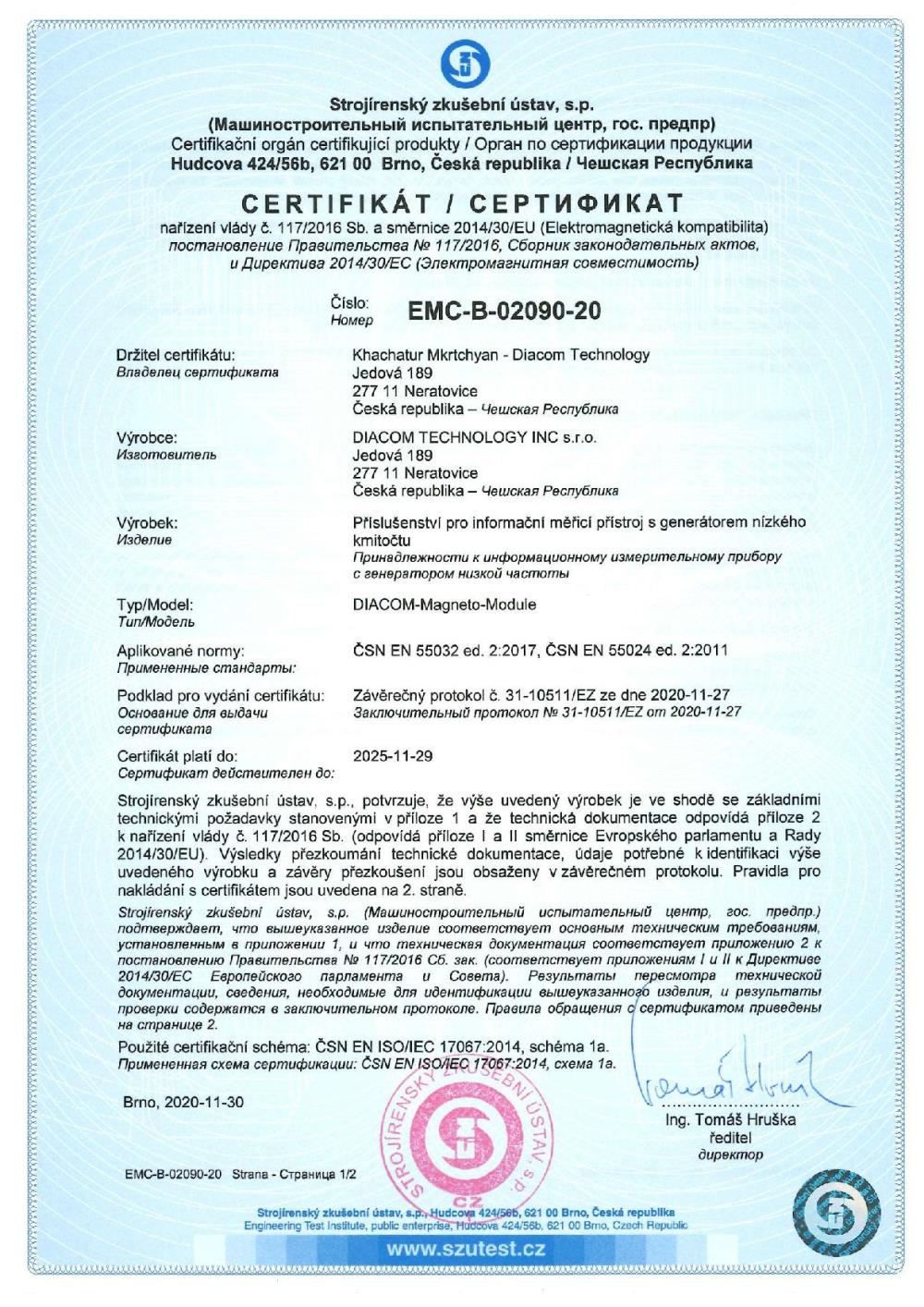

Certification is available upon request. Documents are available in PDF format.
