DIACOM-SOLO-FREQ-PC

DIACOM-SOLO-FREQ-PC

DIACOM-SOLO-FREQ-PC is a compact generator of low-current electromagnetic impulses designed to operate exclusively together with a personal computer.

The device is used to generate defined frequencies, frequency sequences, and programs intended for frequency-based action on microorganisms and, primarily, pathogenic microflora in various media containing a sufficient amount of water.

Unlike the autonomous DIACOM-SOLO-FREQ-Personal-Medio and DIACOM-SOLO-FREQ-Personal-Medio2-Magneto models, the PC model:

🔹 has no built-in display

🔹 has no battery

🔹 has no autonomous mode

🔹 does not store programs for independent launch without a computer

🔹 operates only while continuously connected to a personal computer via USB

Primary control is performed by DIACOM software.

Core Concept of DIACOM-SOLO-FREQ-PC

DIACOM-SOLO-FREQ-PC is a compact computer-controlled frequency generator.

Its main task is to receive control commands from the software and convert them into low-current electromagnetic impulses of a defined frequency.

The device is used for:

🔹 generating individual frequencies

🔹 executing frequency sequences

🔹 working with preconfigured programs

🔹 controlling generation parameters from a computer

🔹 transmitting the frequency signal through the FREQ output

🔹 working with compatible cables and external components of the DIACOM system

Without a computer, the device does not function as an independent generator.

Purpose and Operating Principle

Devices of this class are intended for operation with microorganisms in various media containing at least approximately 35% water.

The presence of water provides electrical conductivity of the medium and supports transmission of the electromagnetic signal.

The declared operating concept is based on the action of an electromagnetic field of a specific frequency on the cellular structures of microorganisms.

According to this concept, when certain frequency characteristics coincide, resonant oscillations may occur in the cell membrane of a microorganism, potentially leading to disruption of its structure.

DIACOM-SOLO-FREQ-PC is used with programs associated with:

🔹 pathogenic microflora

🔹 bacteria

🔹 viruses

🔹 fungal factors

🔹 other groups of microorganisms for which corresponding frequency programs are available

Operation Only with a Personal Computer

DIACOM-SOLO-FREQ-PC is designed exclusively for computer control.

To operate it, the user must:

install the appropriate driver;

connect the device to the computer via USB;

launch compatible DIACOM software;

select or create the required program;

start generation.

The computer simultaneously performs two functions:

🔹 supplies power to the device via USB

🔹 transmits control commands and frequency parameters

Without a computer connection, the device does not operate.

No Autonomous Mode

The design of DIACOM-SOLO-FREQ-PC does not include:

❌ a built-in battery

❌ its own display

❌ autonomous power supply

❌ an independent interface for selecting programs

❌ autonomous program execution

❌ operation without a computer

This fundamentally distinguishes the PC version from Personal-Medio and Personal-Medio2-Magneto.

DIACOM-SOLO-FREQ-PC was developed as the simplest and most compact execution generator, fully controlled by software.

Design

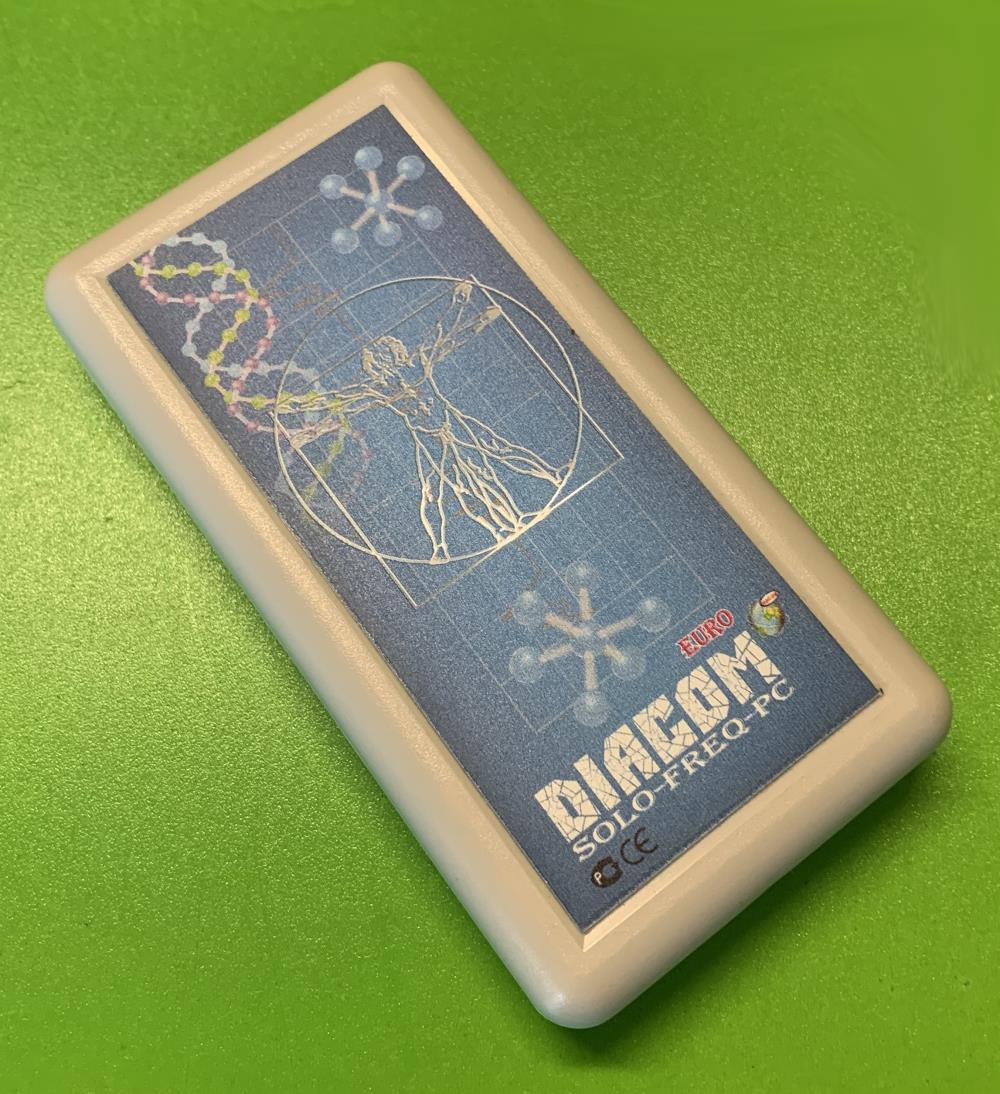

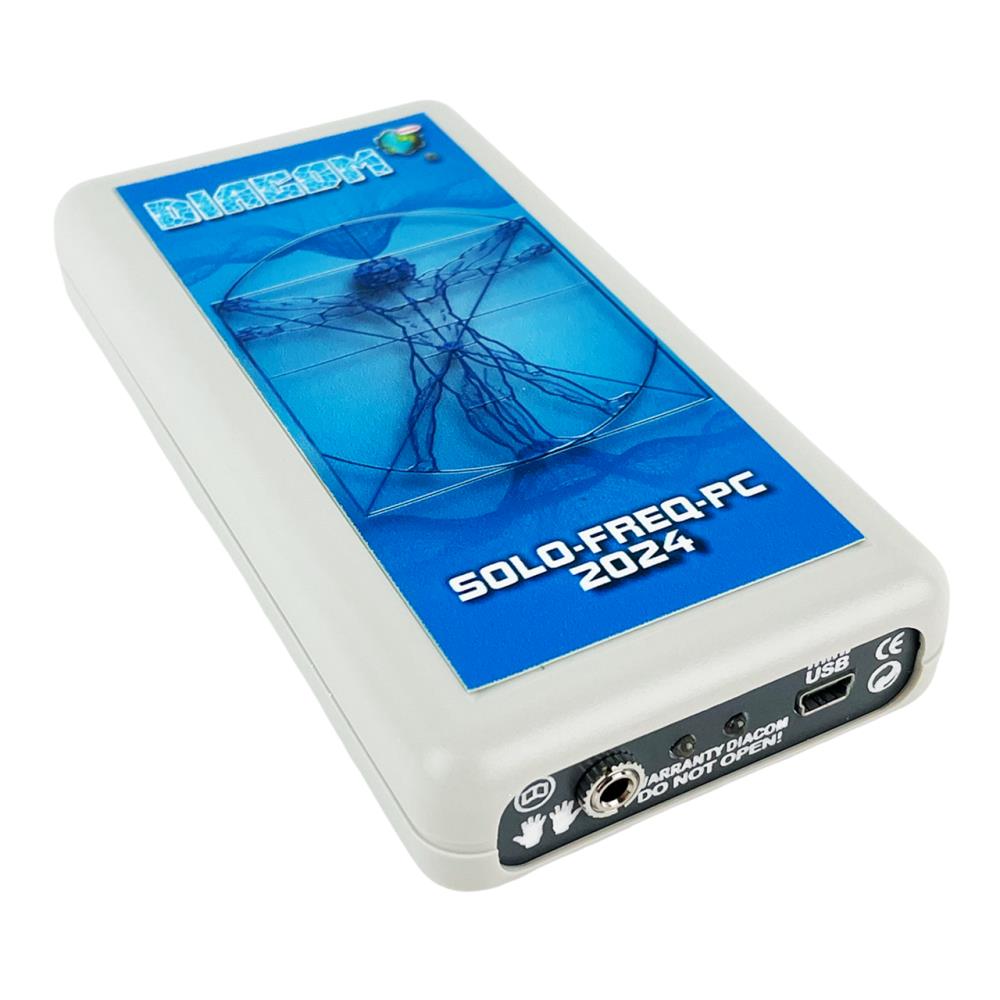

DIACOM-SOLO-FREQ-PC is housed in a compact enclosure.

Enclosure dimensions:

📐 135 × 70 × 24 mm

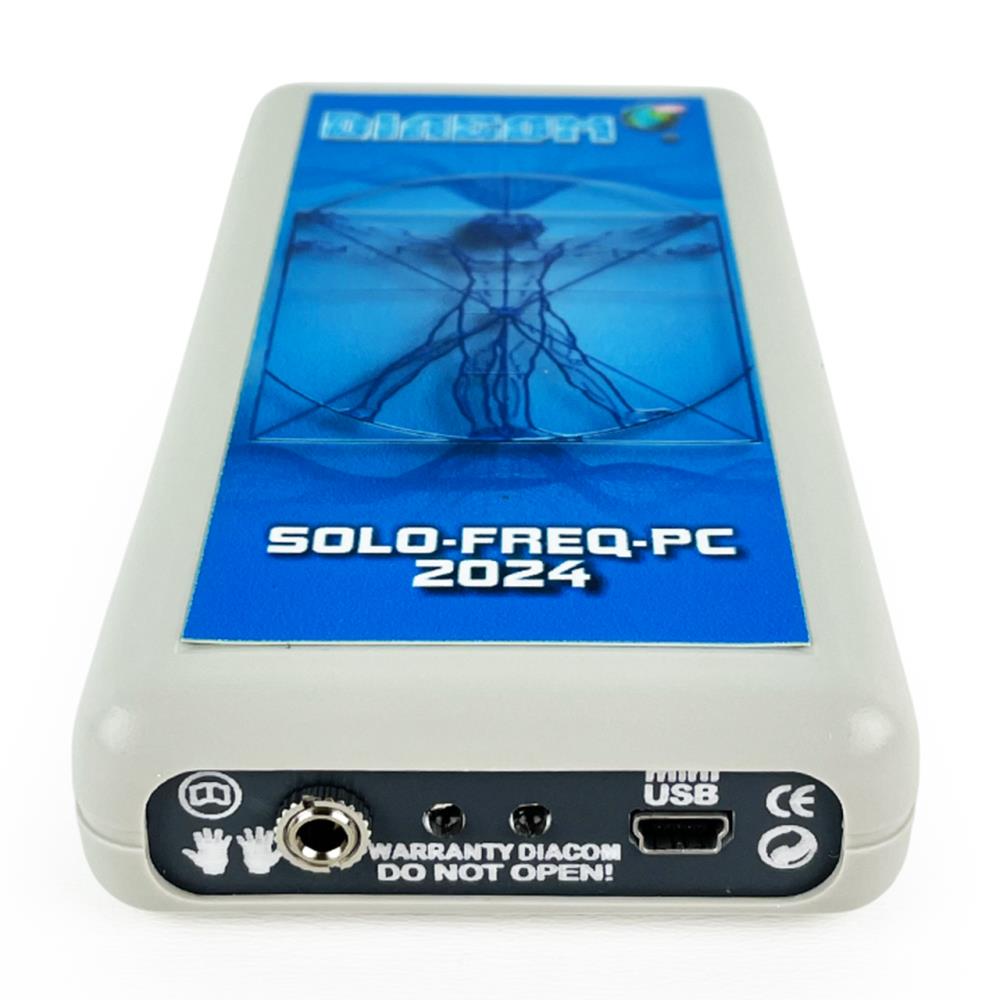

The enclosure includes:

🔹 two LED indicators

🔹 USB connector

🔹 FREQ connector for compatible cables

Inside the device are:

🔹 electronic circuit board

🔹 computer communication system

🔹 microcontroller

🔹 low-current electromagnetic impulse generation circuit

🔹 FREQ output control interface

🔹 embedded device software

LED Indication

DIACOM-SOLO-FREQ-PC is equipped with two LED indicators.

They are used to display the main device states, including:

🔹 power

🔹 computer connection

🔹 data exchange

🔹 generator operation

The exact indication logic depends on the embedded software version.

USB Connection

USB is used simultaneously for:

🔌 powering the device

💻 communication with the personal computer

🔄 transmitting control commands

📡 transmitting generation parameters

🛠 service operations

🔄 updating the embedded software

Device power source:

computer USB port

No separate power adapter is required for operation.

FREQ Output

DIACOM-SOLO-FREQ-PC is equipped with a dedicated output:

📌 FREQ

Generated frequency impulses are transmitted through it to:

🔹 compatible FREQ cables

🔹 external components of the DIACOM system

🔹 compatible peripheral devices

Output signal parameters are determined by the software running on the computer.

Operation with Software

Recommended software:

📌 DIACOM-GENERATOR

DIACOM-GENERATOR allows the user to:

🔹 set individual frequencies

🔹 create frequency sequences

🔹 create custom programs

🔹 start and stop generation

🔹 control operating parameters

🔹 save prepared programs

🔹 reuse previously created sequences

DIACOM-GENERATOR

DIACOM-GENERATOR is the primary program for direct control of DIACOM-SOLO-FREQ-PC.

The software allows the user to control the generator completely from the computer.

Main functions:

🔹 manual frequency input

🔹 loading a prepared program

🔹 creating a frequency sequence

🔹 setting duration

🔹 starting generation

🔹 stopping the program

🔹 saving custom scenarios

Device Driver

Before first use, the appropriate driver must be installed.

The driver is required so that:

🔹 the operating system correctly recognizes DIACOM-SOLO-FREQ-PC

🔹 the software can establish a connection

🔹 stable data exchange is provided

🔹 the device correctly receives generation commands

Without the installed driver, the device may not be recognized by the computer or may operate incorrectly.

Interactive Update

DIACOM-SOLO-FREQ-PC supports interactive updating of the embedded software.

For this purpose, the following software is used:

📌 DIACOM-UPDATER

DIACOM-UPDATER allows the user to:

🔹 check for a new version

🔹 download an update

🔹 update the device firmware

🔹 receive fixes and compatibility improvements

Update Procedure

To update the device:

1. Install the DIACOM-SOLO-FREQ-PC driver.

2. Install DIACOM-UPDATER.

3. Connect the device to the computer via USB.

4. Launch DIACOM-UPDATER.

5. Wait for the automatic version check.

If a new version is available, the software will perform the prescribed update procedure.

📥 Before starting the update, make sure that the Internet connection is stable and sufficiently fast.

⚠ During the update, do not:

— disconnect the USB cable

— switch off the computer

— close DIACOM-UPDATER

— interrupt the Internet connection

— disconnect the device before the process is complete

Operation in Different Media

For frequency-action programs, it is recommended to use media containing a sufficient amount of water.

Approximate minimum level:

💧 at least 35% water

The presence of water is associated with electrical conductivity of the medium and propagation of electrical and electromagnetic effects.

The device can be used in the intended software modes with various water-containing media.

Main Areas of Use

DIACOM-SOLO-FREQ-PC can be used for:

🔹 generating defined frequencies

🔹 working with frequency programs

🔹 executing frequency sequences

🔹 working with programs for different groups of microorganisms

🔹 using the FREQ output

🔹 connecting compatible peripheral devices

🔹 controlling generation directly from a computer

🔹 executing custom programs

🔹 updating the embedded software

Main Advantages

DIACOM-SOLO-FREQ-PC combines:

🔹 compact enclosure

🔹 simple hardware architecture

🔹 power directly from USB

🔹 no need for an external power adapter

🔹 wide generated-frequency range

🔹 complete computer-based control

🔹 FREQ output

🔹 compatibility with DIACOM-GENERATOR

🔹 interactive updating

🔹 simple connection

🔹 minimal number of controls on the enclosure

Difference from DIACOM-SOLO-FREQ-Personal-Medio

DIACOM-SOLO-FREQ-PC

🔹 operates only with a computer

🔹 has no display

🔹 has no battery

🔹 does not operate autonomously

🔹 powered via USB

🔹 controlled through DIACOM-GENERATOR

🔹 FREQ output

🔹 compact 135 × 70 × 24 mm enclosure

DIACOM-SOLO-FREQ-Personal-Medio

🔹 autonomous operation

🔹 built-in 2.8″ display

🔹 built-in battery

🔹 internal memory

🔹 program storage

🔹 operation without a computer

🔹 FREQ output

🔹 built-in user controls

Thus, the PC version is a simpler computer-dependent generator, while Personal-Medio is an autonomous personal device.

Difference from DIACOM-SOLO-FREQ-Personal-Medio2-Magneto

DIACOM-SOLO-FREQ-PC

🔹 computer control only

🔹 no display

🔹 no battery

🔹 no autonomous mode

🔹 no magnetic module

DIACOM-SOLO-FREQ-Personal-Medio2-Magneto

🔹 autonomous mode

🔹 3.5″ display

🔹 built-in battery

🔹 internal memory

🔹 integrated magnetic module

🔹 expanded hardware modes

DIACOM-SOLO-FREQ-PC is the simplest model, controlled directly from a computer.

Technical Specifications

📱 Device type: generator of low-current electromagnetic impulses

📐 Enclosure dimensions: 135 × 70 × 24 mm

🖥 Display: none

💡 LED indication: 2 LEDs

🔌 Connection interface: USB

🔗 Output: FREQ

🔋 Battery: none

⚡ Power source: computer USB port

⚡ Supply voltage: 5 V

🔋 Current consumption: up to 300 mA

📡 Generated frequency range: 1 Hz – 1 MHz

💻 Pairing speed: up to 1 MHz

💾 Internal memory for autonomous programs: not used

🔄 Interactive update: supported

💻 Operation without a computer: not supported

📂 Program storage for autonomous launch: not supported

🎛 Control: exclusively via computer

💻 Recommended software: DIACOM-GENERATOR

🔄 Update software: DIACOM-UPDATER

🔌 External power adapter: not required

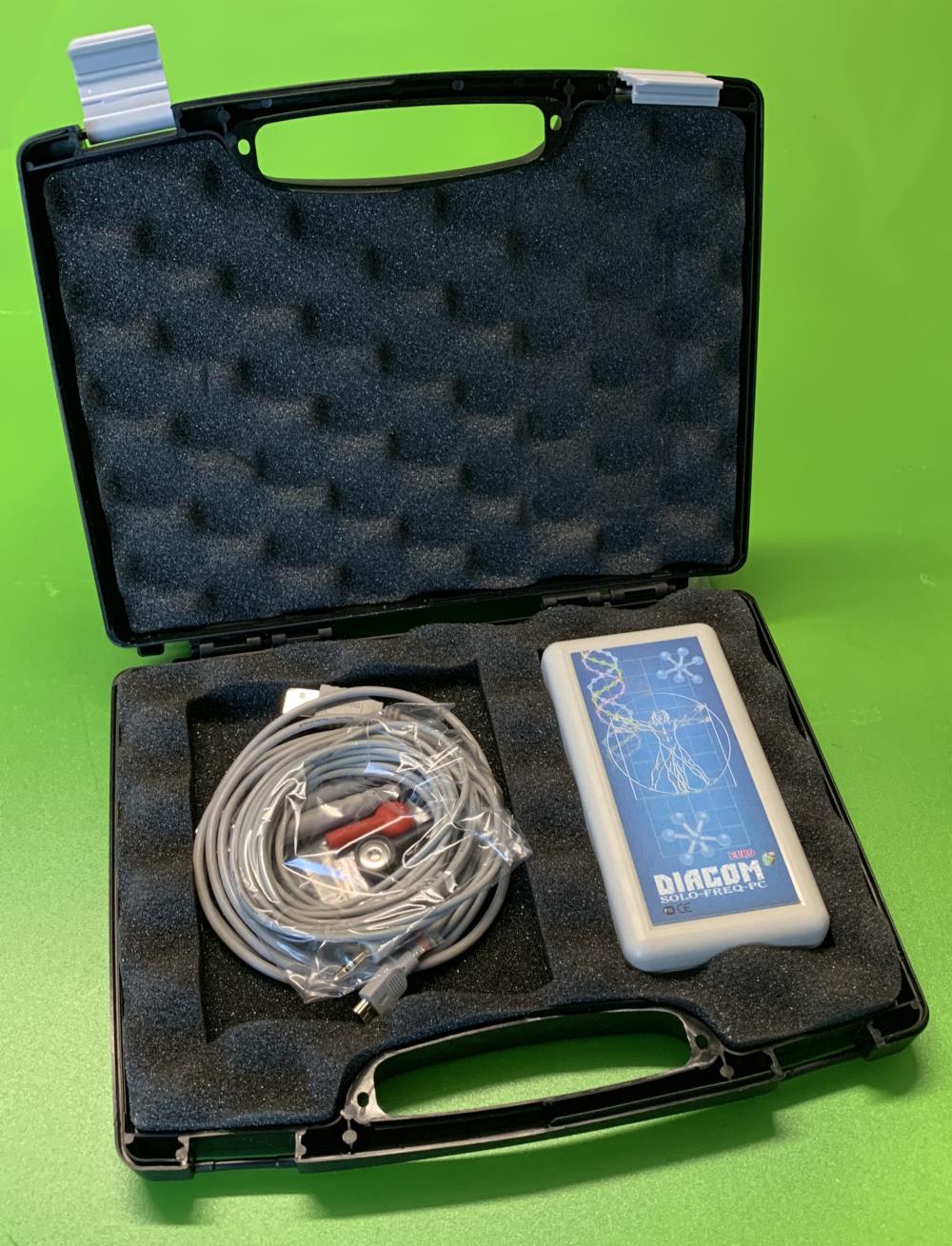

Package Contents

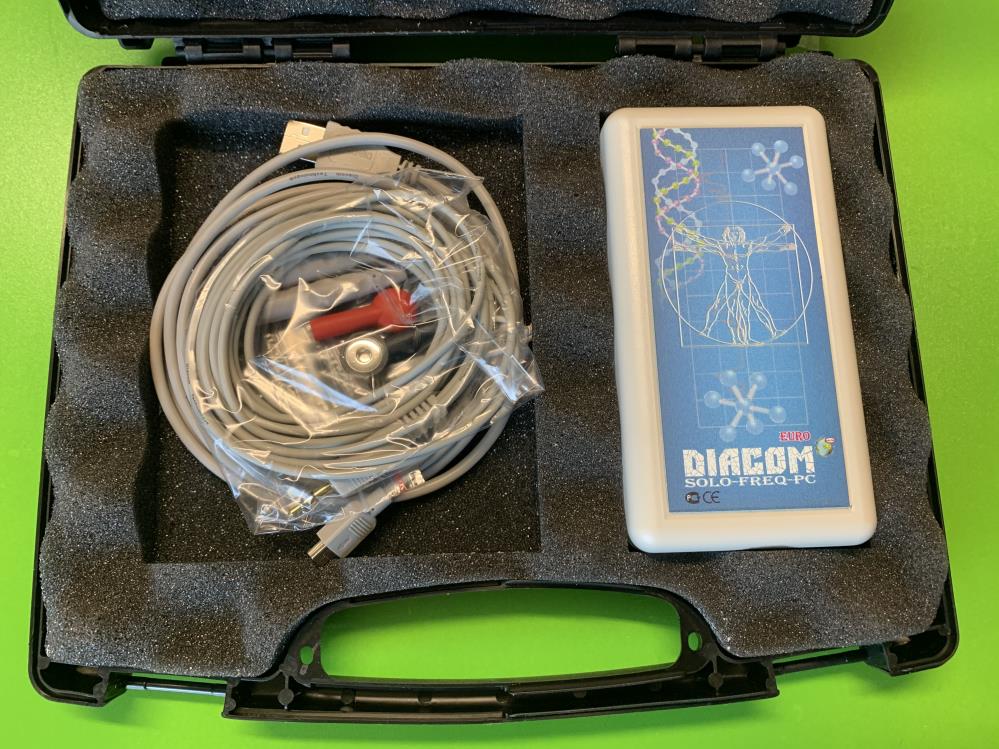

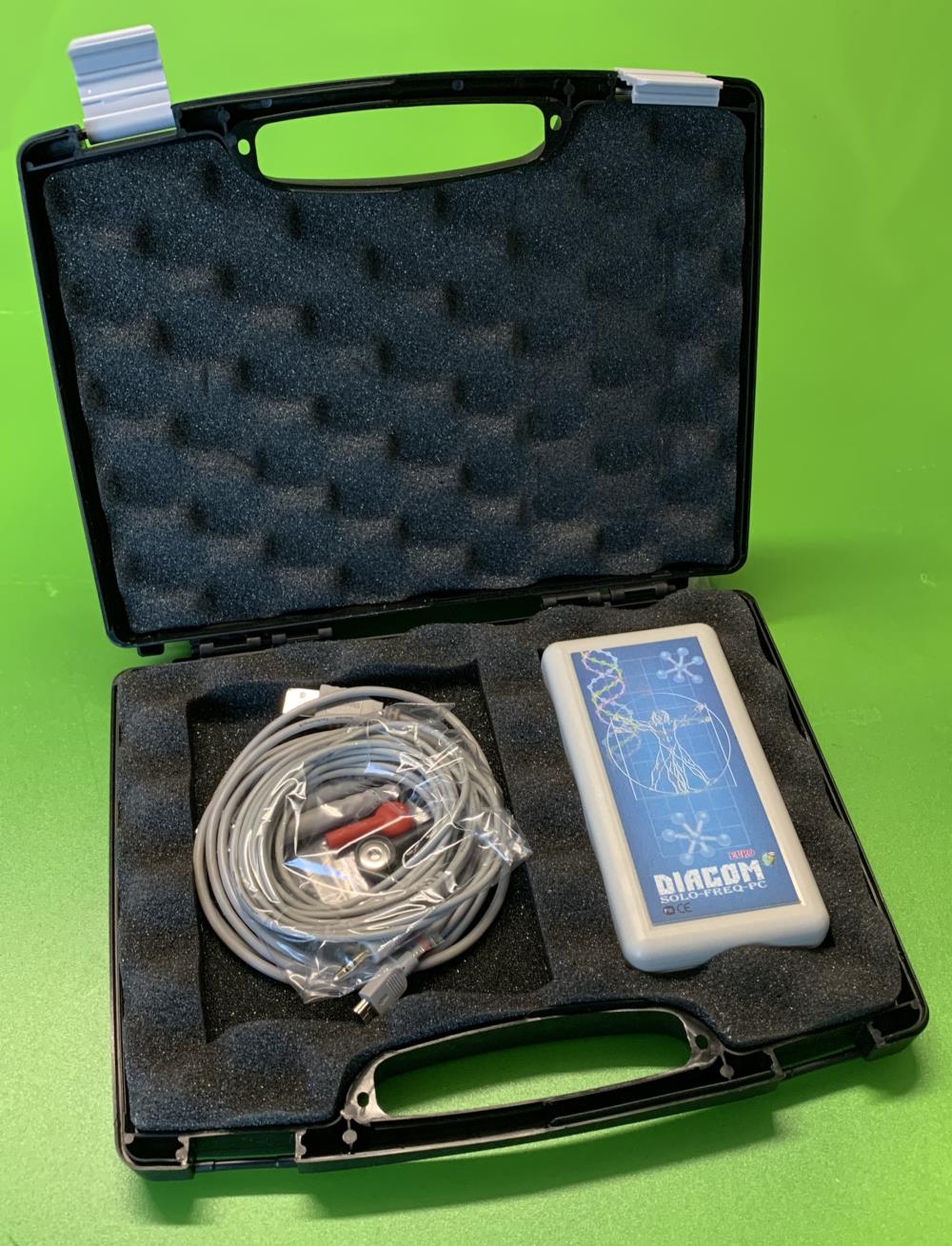

Standard package includes:

✅ DIACOM-SOLO-FREQ-PC

✅ USB cable

✅ FREQ cables

✅ accompanying documentation

✅ transport packaging

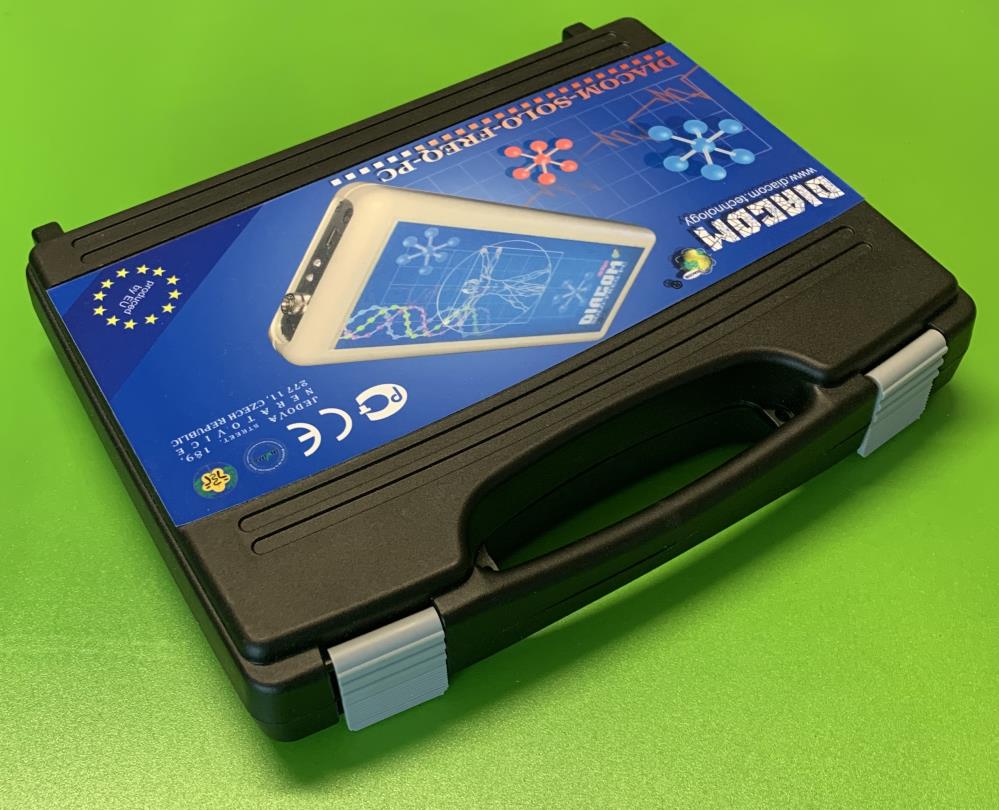

Depending on the delivery, the device may be supplied in:

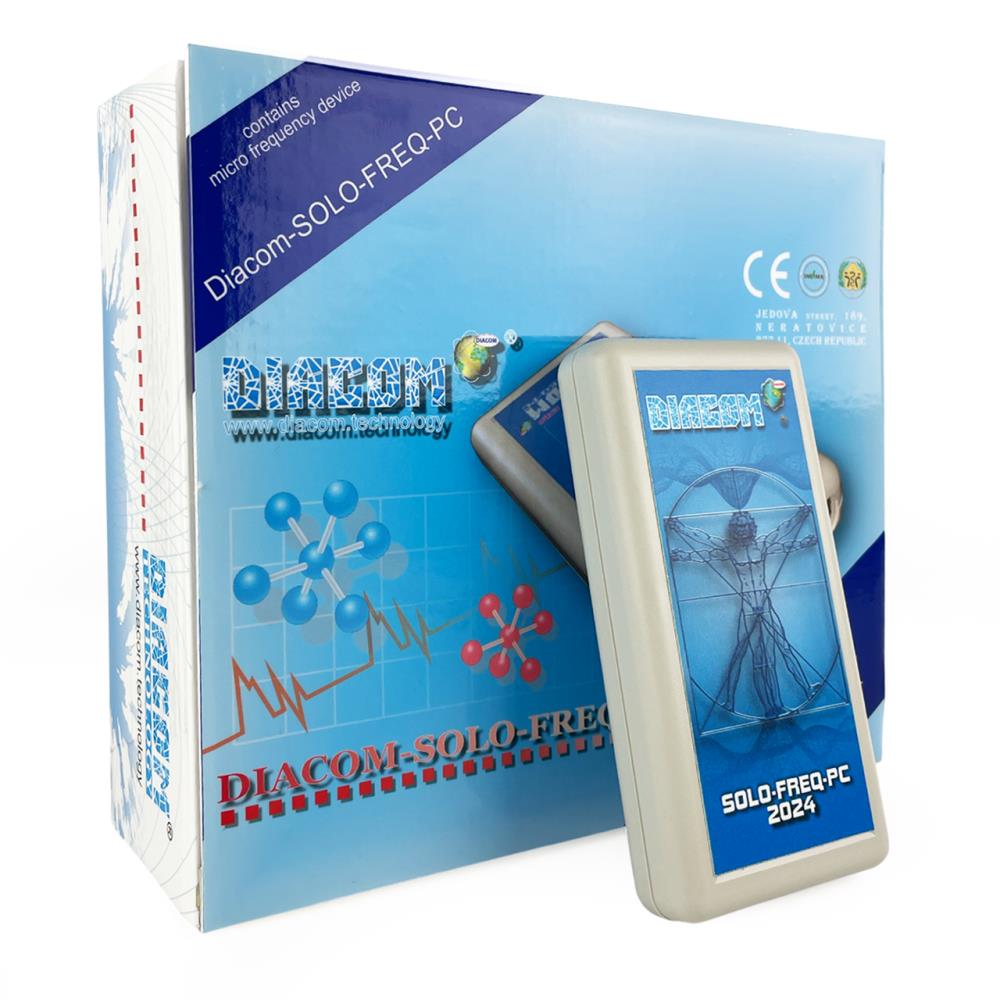

🔹 reusable cardboard packaging

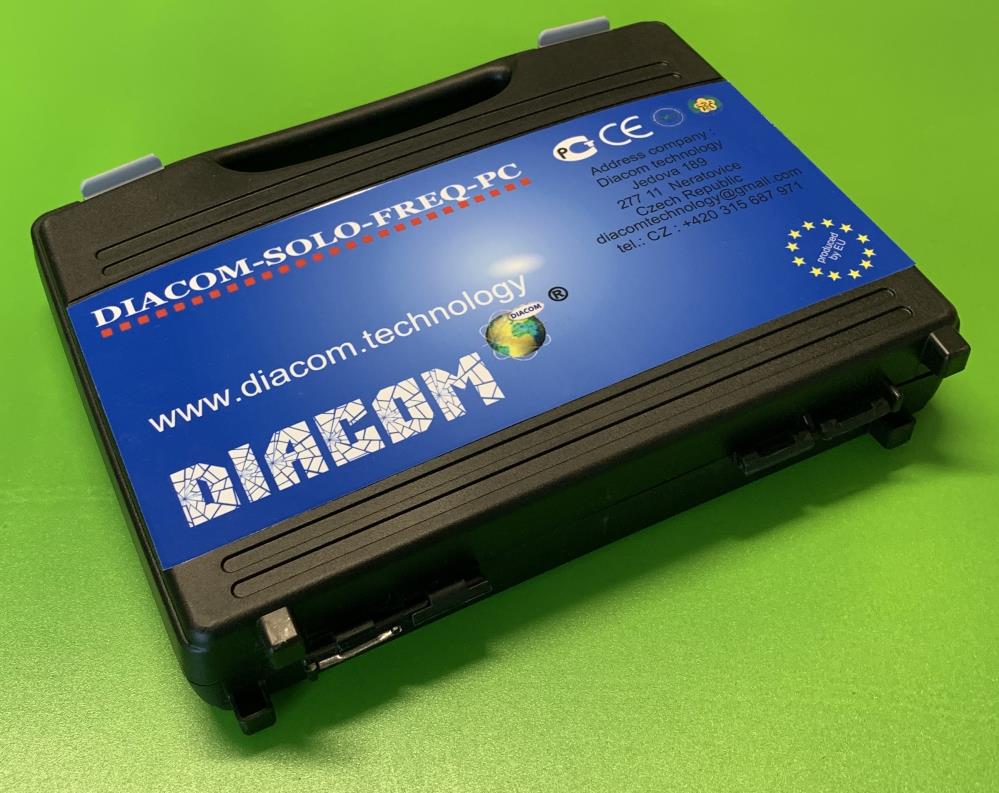

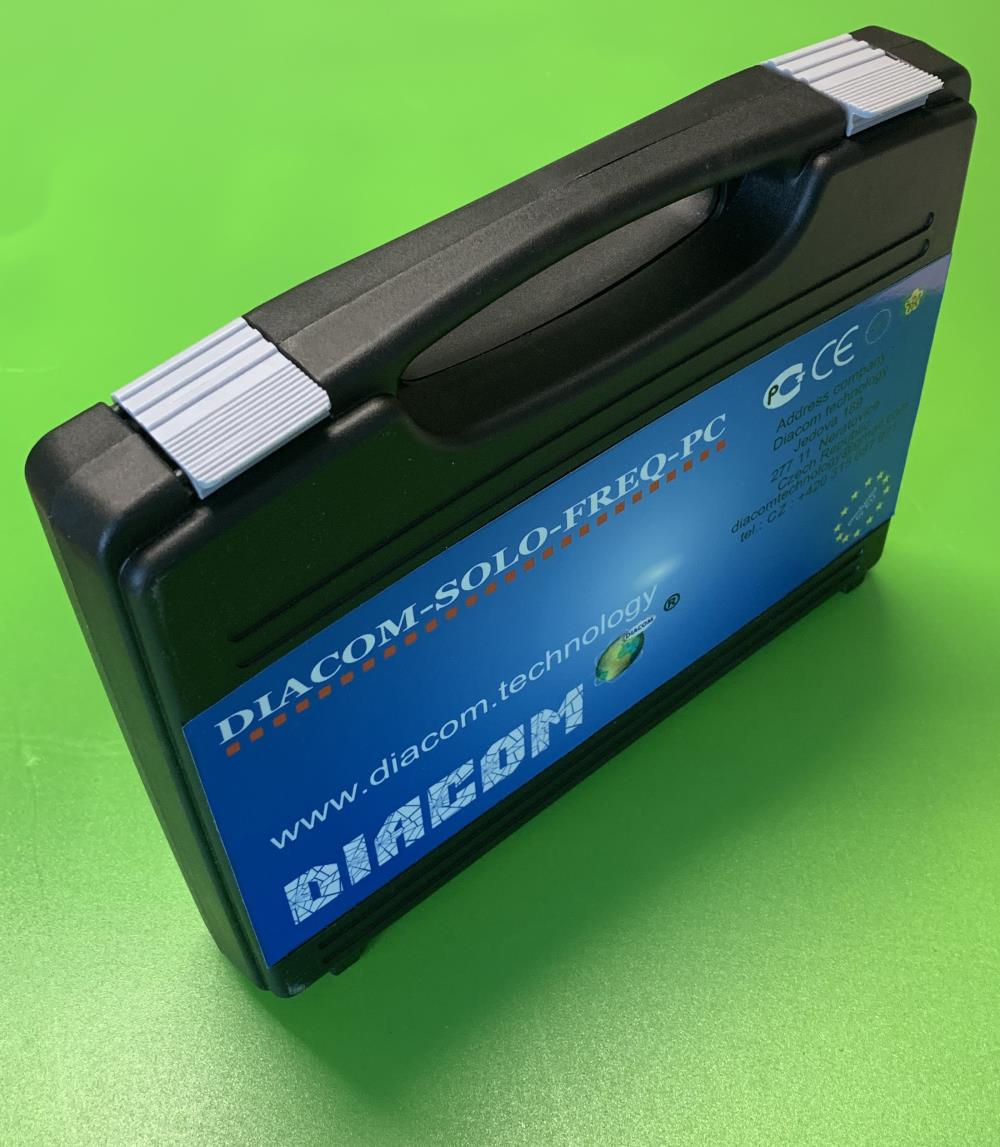

🔹 plastic case

🔹 aluminum case

Safety

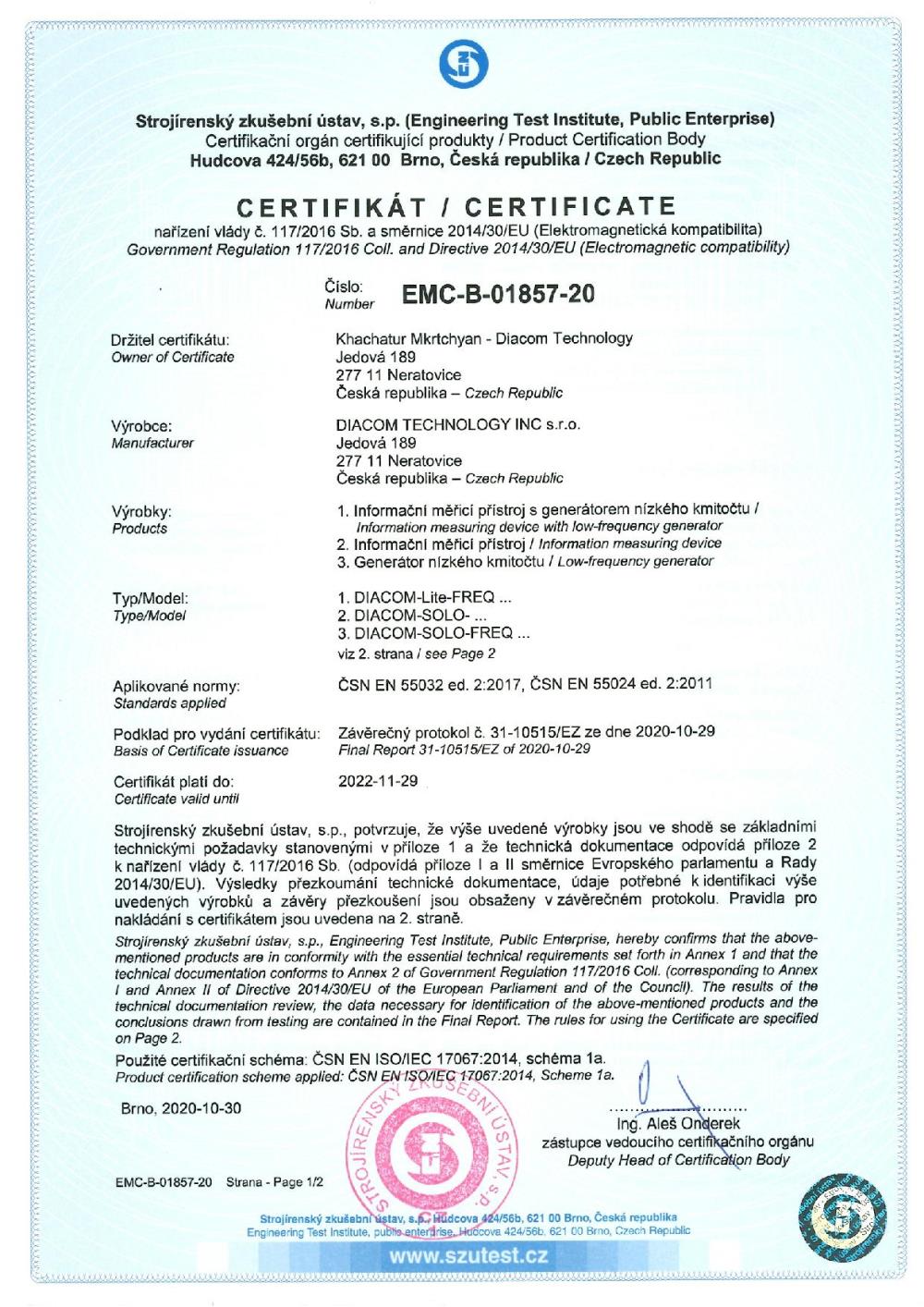

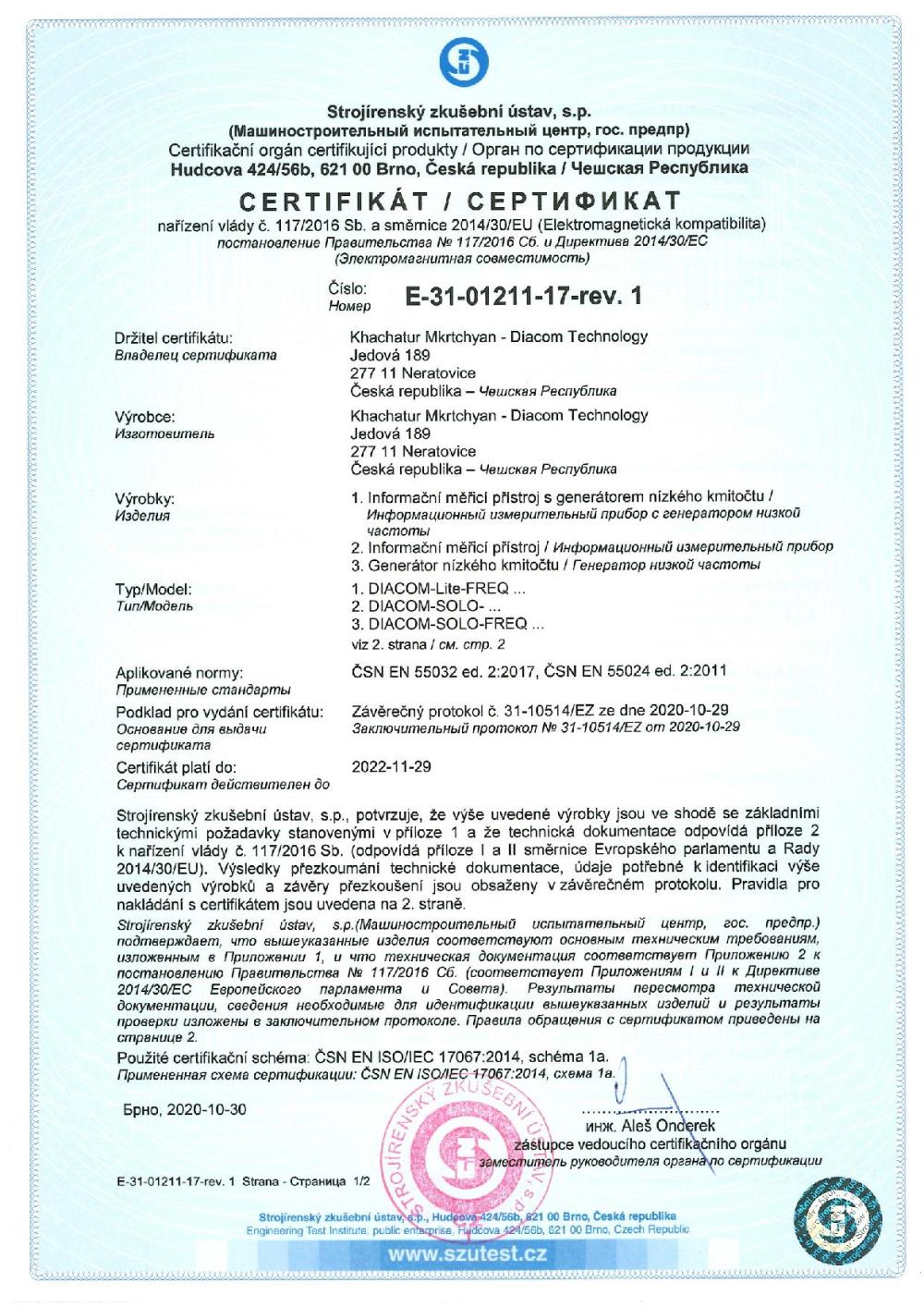

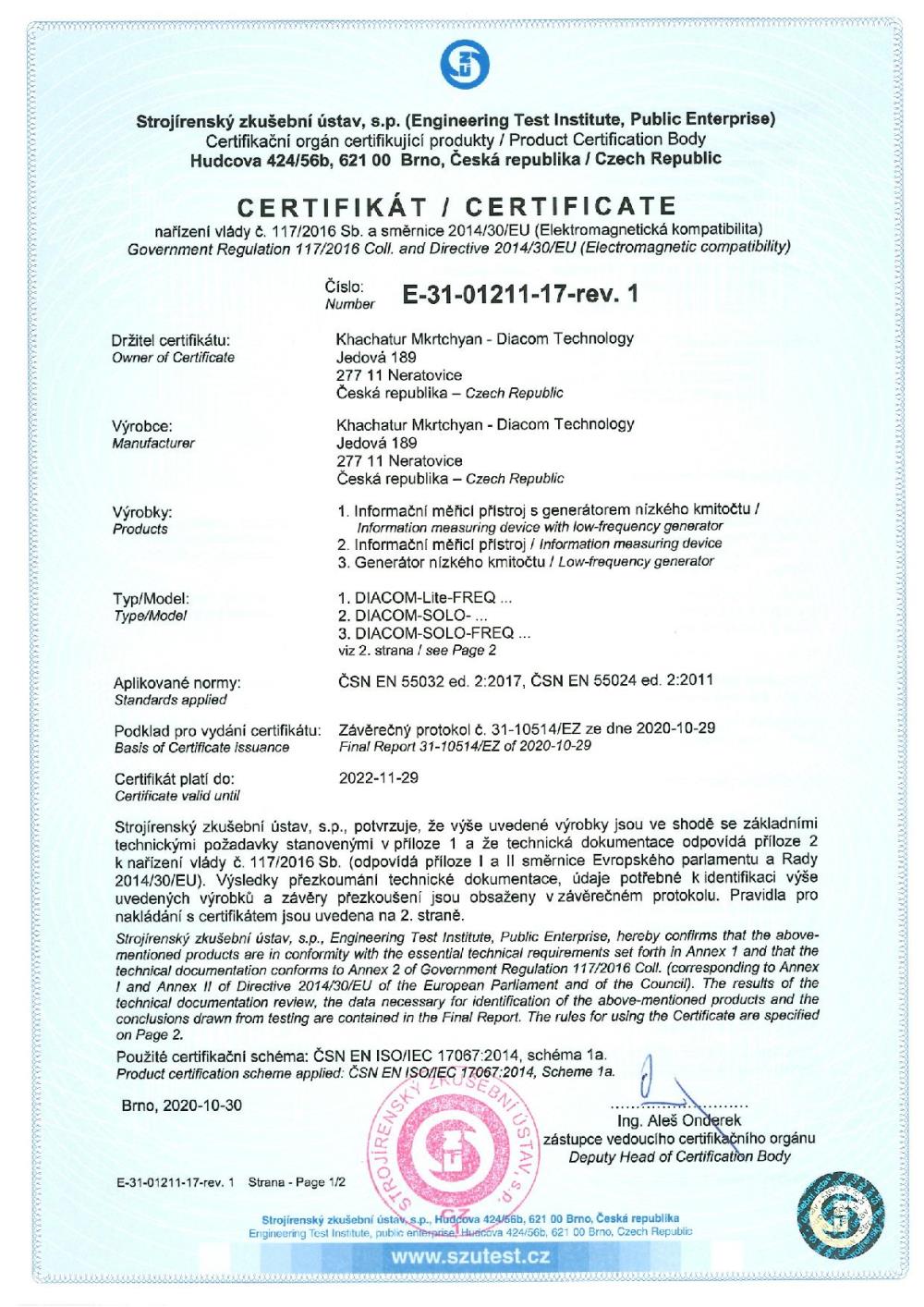

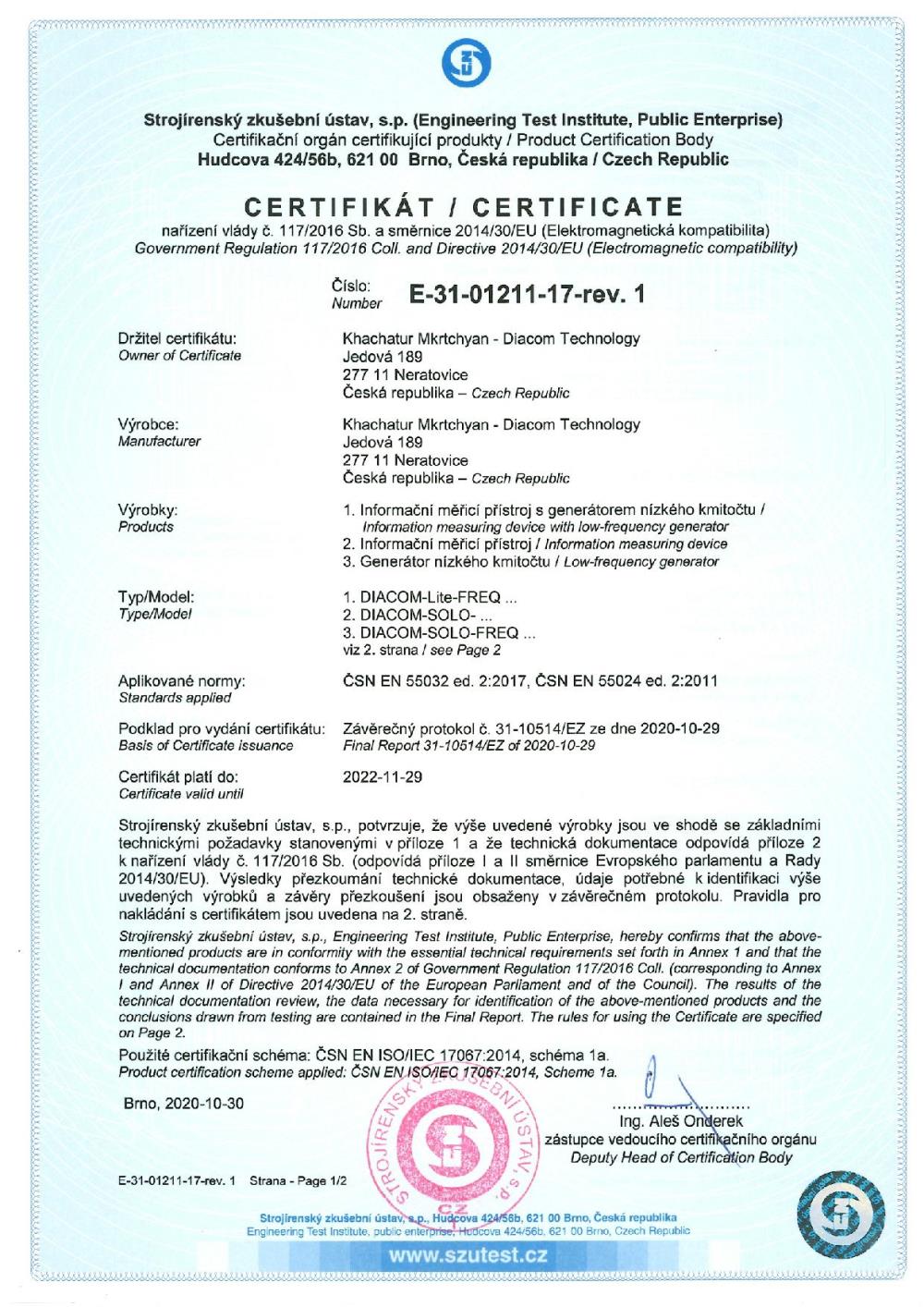

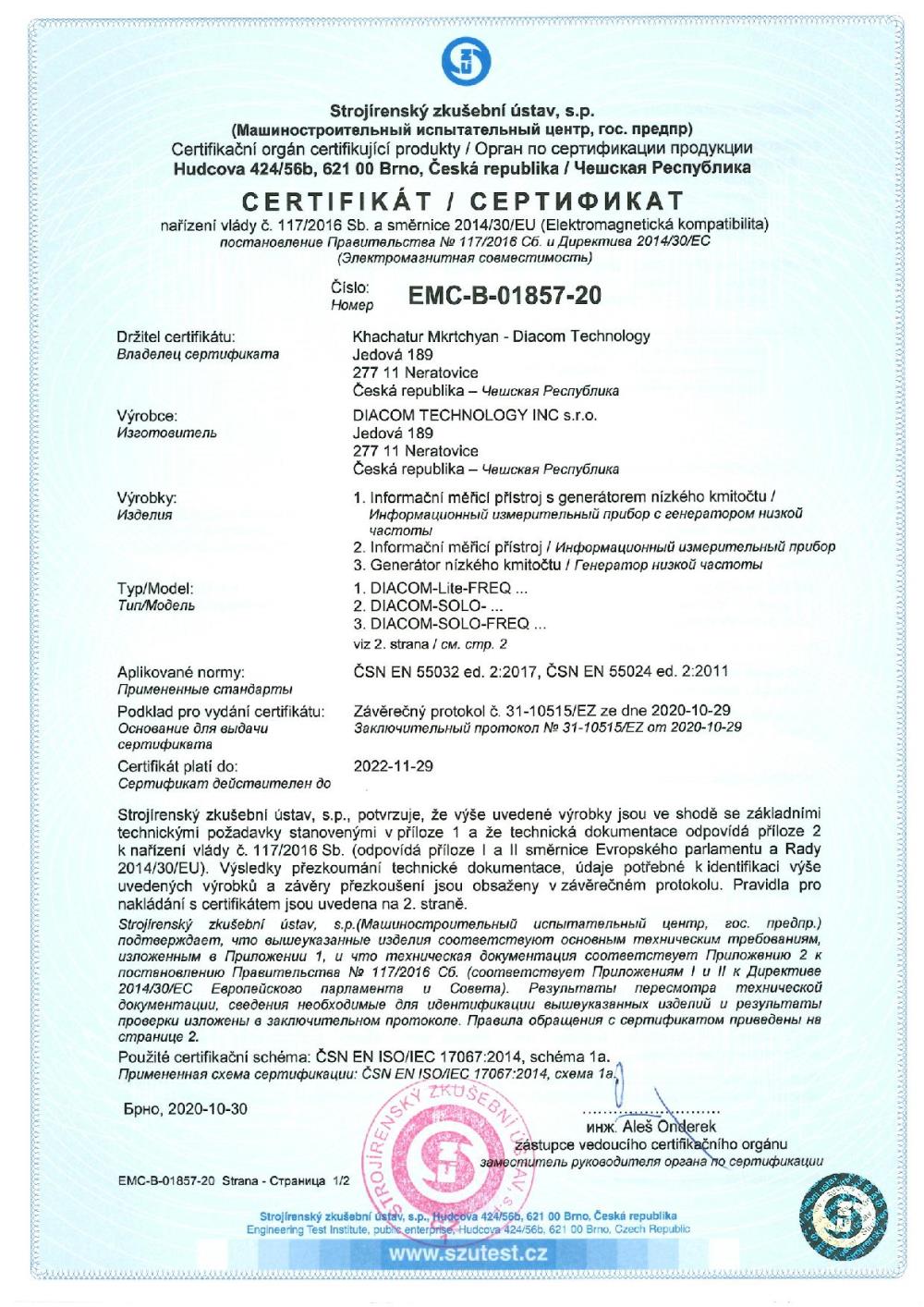

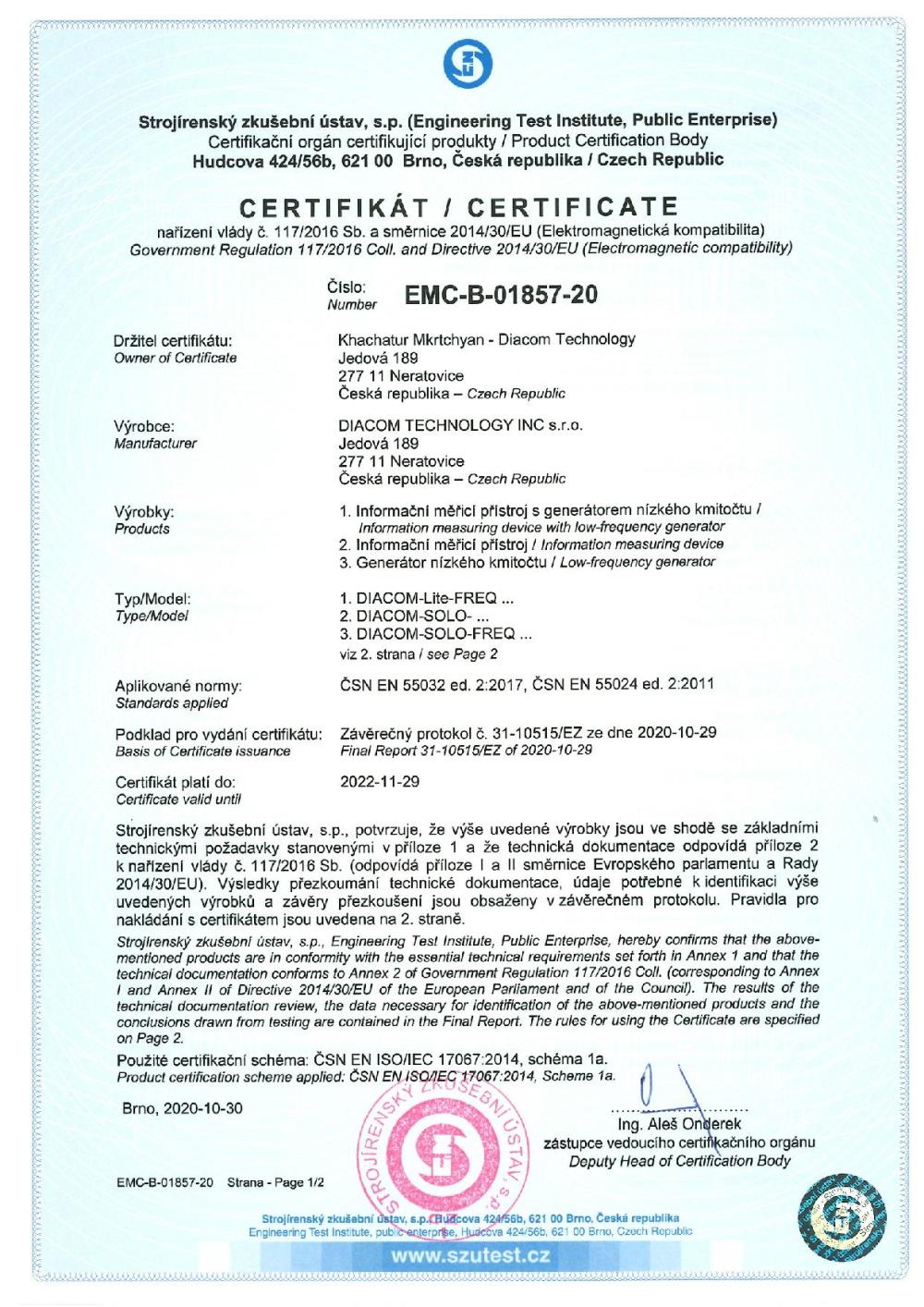

DIACOM-SOLO-FREQ-PC is registered by certification bodies as a generator of low-current electromagnetic waves.

The device has passed the prescribed tests, including:

🛡 electromagnetic safety

🌿 environmental safety

👤 safety for use by people

🐾 safety for use in the presence of animals

During operation, the User Manual must be followed and the device must be used only with compatible software and accessories.

Warranty

🛡 Diacom Technology® provides a limited 2-year warranty for the main electronic unit of DIACOM-SOLO-FREQ-PC.

The warranty does not cover:

— mechanical damage

— drops and impacts

— liquid ingress

— improper operation

— unauthorized opening or repair

— cables and consumable components

— damage caused by user actions

Training and Technical Support

❗ The price of DIACOM-SOLO-FREQ-PC does not include training or technical support.

Training, extended technical support, and additional service options are provided separately in accordance with the terms of the specific offer.

DIACOM-SOLO-FREQ-PC

DIACOM-SOLO-FREQ-PC is a compact computer-controlled generator of low-current electromagnetic impulses designed to operate with frequency programs under full control of a personal computer.

The device has no own display, battery, or autonomous control system.

For operation, the following are required:

✅ personal computer

✅ installed driver

✅ USB connection

✅ DIACOM-GENERATOR software

The main unit generates a frequency signal in the range of 1 Hz – 1 MHz, receives power directly from the computer's USB port, and transmits the generated impulses through the FREQ output.

By concept, DIACOM-SOLO-FREQ-PC is the simplest and most compact representative of the SOLO-FREQ line — for users who require a fully functional computer-controlled frequency generator without the need for autonomous operation.

DIACOM TECHNOLOGY® — precise frequency control directly from your computer.
